1540 Crossover Stirrer
Model Number: 1540
Part Number: 22J2080

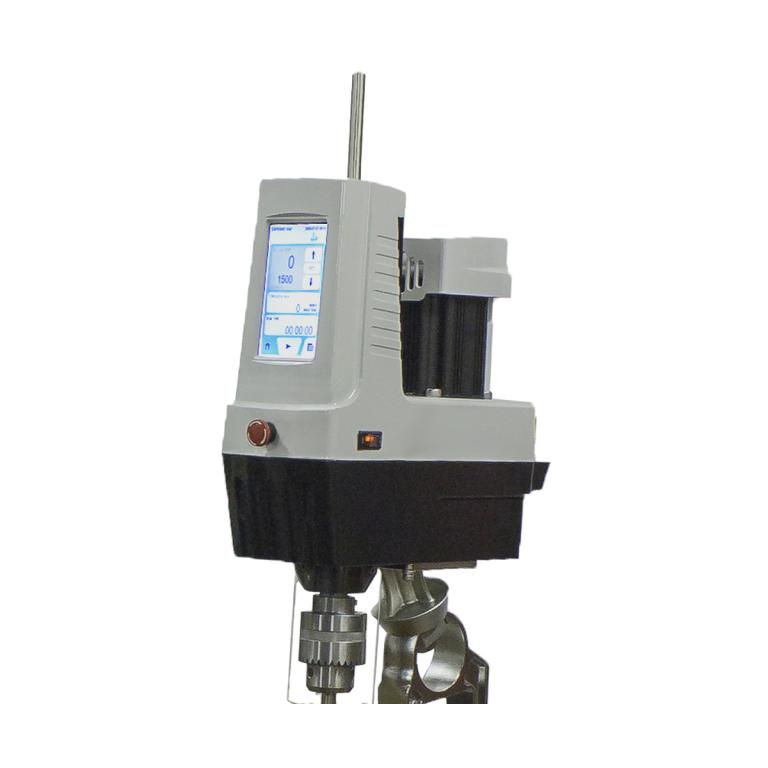

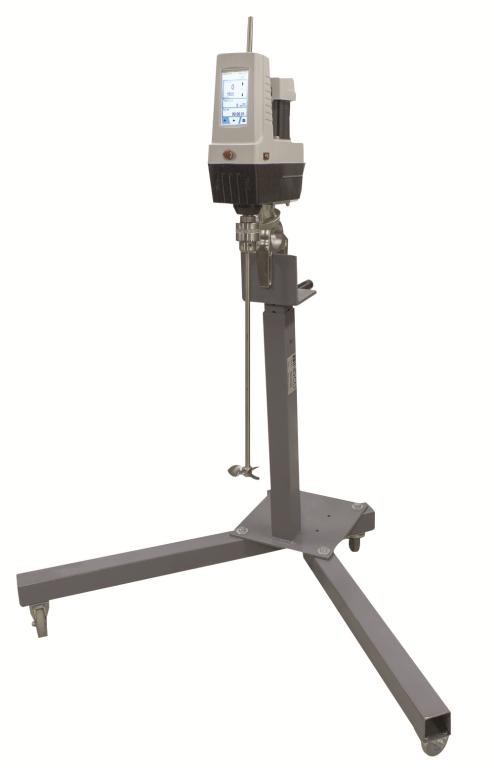

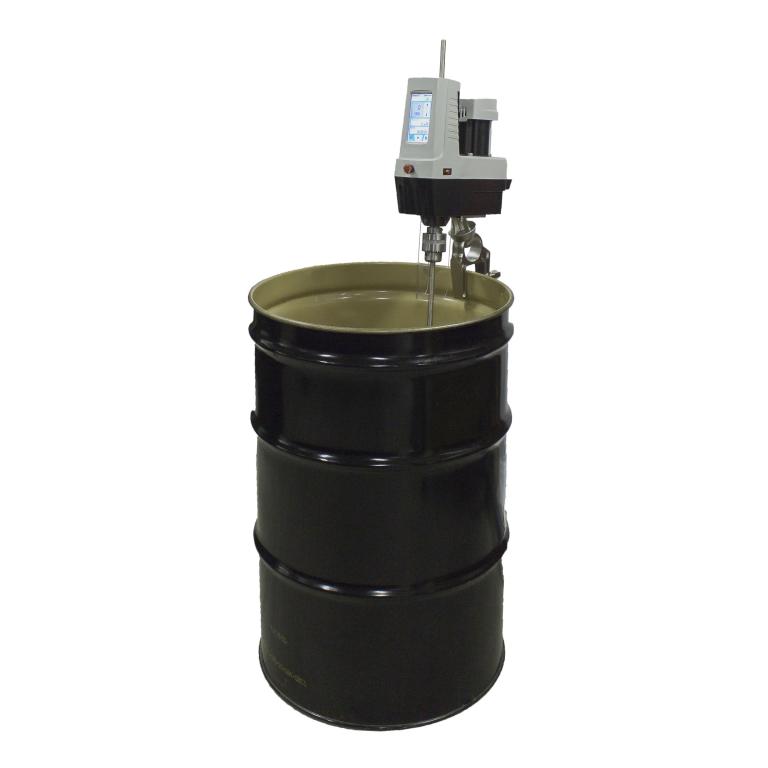

The 1540 Crossover Batch Mixer has the power of a clamp mixer with the controls of a lab stirrer. Use for large lab batches or industrial pilot applications up to 55 gallons. The 1/2 HP brushless DC motor is fan cooled with overload and overheat protection and is rated 115V, 60 Hz, 50 - 1500 RPM. Features a resistive touch screen with speed control on the home screen. PC, PLC Control, Data Logging, RS232, 4-20 mA comm ports. The 5/8" capacity chuck and shaft guard are included. Stirrer is equipped with a square bolt pattern (87.6mm) however an optional A128SET c-clamp or a A129 flat plate mount are available and sold separately, See popular items CF436 and CF636 propeller/shaft assemblies that work well with this stirrer. (Stand, c-clamp and mixing shaft in photos are sold separately.)
Motor
| Horsepower | 1/2 |
| MotorRPM | 50-1500 |
| Motor Type | Electric |
| Phase | single |
| Voltage | 115V |
| Hertz | 60 |
| Gearbox Design | Brushless DC Motor |
| Tachometer | Touch Screen |
General
| Warranty | 3 Year Manufacturer's Warranty |
| Shipping Carrier | Small Parcel |
| FOB | IN |
Model Number: 1540
The 1540 Crossover Batch Mixer has the power of a clamp mixer with the controls of a lab stirrer. Use for large lab batches or industrial pilot applications up to 55 gallons. The 1/2 HP brushless DC motor is fan cooled with overload and overheat protection and is rated 115V, 60 Hz, 50 - 1500 RPM. Features a resistive touch screen with speed control on the home screen. PC, PLC Control, Data Logging, RS232, 4-20 mA comm ports. The 5/8" capacity chuck and shaft guard are included. Stirrer is equipped with a square bolt pattern (87.6mm) however an optional A128SET c-clamp or a A129 flat plate mount are available and sold separately, See popular items CF436 and CF636 propeller/shaft assemblies that work well with this stirrer. (Stand, c-clamp and mixing shaft in photos are sold separately.)
Motor
| Horsepower | 1/2 |
| MotorRPM | 50-1500 |
| Motor Type | Electric |
| Phase | single |
| Voltage | 115V |
| Hertz | 60 |
| Gearbox Design | Brushless DC Motor |
| Tachometer | Touch Screen |
General
| Warranty | 3 Year Manufacturer's Warranty |
| Shipping Carrier | Small Parcel |
| FOB | IN |
1 Business Days * * If ordered before noon EST will ship same day. Orders in quantity or with other items may extend lead times.
