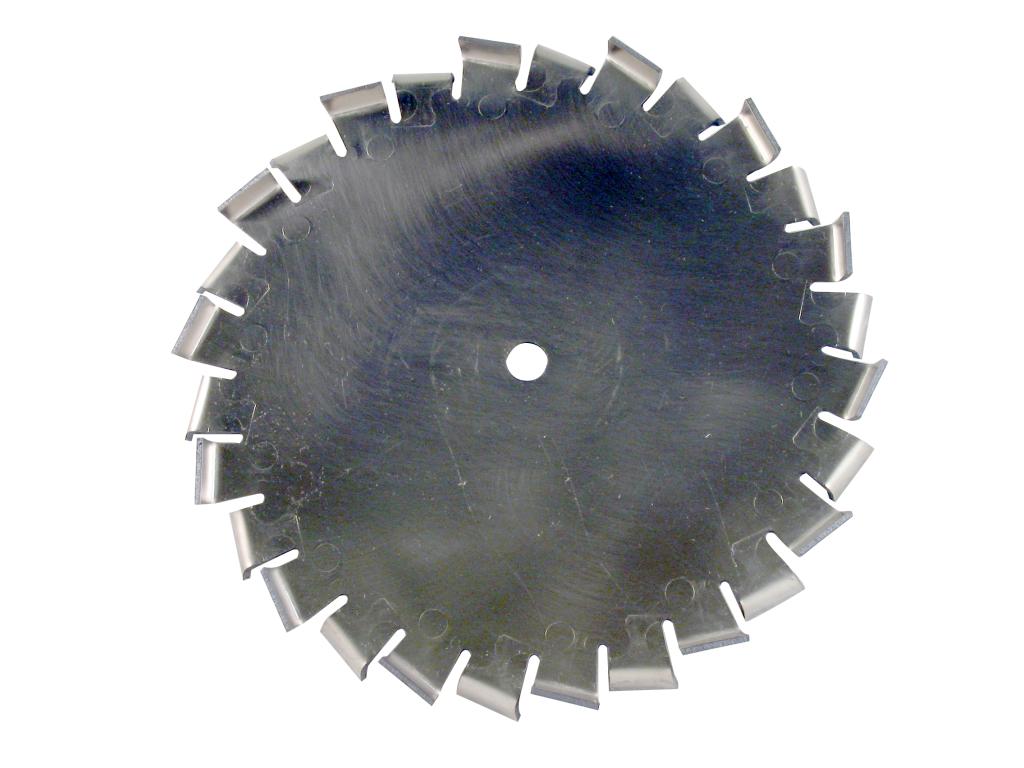

10" Dia. X 5/8" Center Hole Type B 304 SS Dispersion Blade - Coated
Model Number: DB10BT
Part Number: 21C1003
The INDCO tungsten carbide coated Design B dispersion blade is the performance match to the Hockmeyer "F" design. With an aggressive square tooth profile and slots between teeth providing alternate spacing the B blade is another popular option for a wide range of dispersion applications. Tungsten carbide coating provides an extremely hard surface for extended blade life or added durability when used with highly abrasive materials. The 10" diameter blade is laser cut from 304 stainless steel, has a 5/8" center hole and is die formed. We can provide 316 stainless steel blades by request. All our dispersion blades can be supplied with mounting hole patterns to match your equipment requirements. Optional mounting hubs are also available and include welded or bolted designs. Please see our guide to ordering dispersion blades or contact customer service.
Impeller
| Diameter | 10" |
| Style | Dispersion Blade |
| Center Hole | 5/8" |
| Design | B |
| Material Construction | 304 Stainless Steel |
| Surface Finish | Tungsten Carbide Coated |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | Small Parcel |
| FOB | NY |
Model Number: DB10BT
The INDCO tungsten carbide coated Design B dispersion blade is the performance match to the Hockmeyer "F" design. With an aggressive square tooth profile and slots between teeth providing alternate spacing the B blade is another popular option for a wide range of dispersion applications. Tungsten carbide coating provides an extremely hard surface for extended blade life or added durability when used with highly abrasive materials. The 10" diameter blade is laser cut from 304 stainless steel, has a 5/8" center hole and is die formed. We can provide 316 stainless steel blades by request. All our dispersion blades can be supplied with mounting hole patterns to match your equipment requirements. Optional mounting hubs are also available and include welded or bolted designs. Please see our guide to ordering dispersion blades or contact customer service.
Impeller
| Diameter | 10" |
| Style | Dispersion Blade |
| Center Hole | 5/8" |
| Design | B |
| Material Construction | 304 Stainless Steel |
| Surface Finish | Tungsten Carbide Coated |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | Small Parcel |
| FOB | NY |
4 Business Days * Orders in quantity or with other items may extend lead times.
