1/5 HP Heavy Duty Stirrer
Model Number: DC6015
Part Number: 22J2022

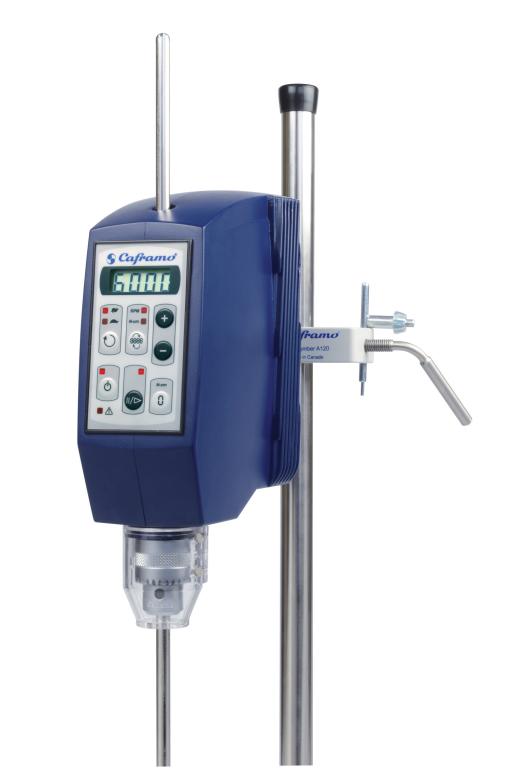

The DC6015 high-torque stirrer is designed specifically to meet the demands of heavy industrial use and is rated for batches up to 6.6 gal (25 liters). This powerful stirrer can be used with viscosities up to 20000 cps. The electric 1/5 HP brushless direct-current motor offers a unique two-speed transmission providing incredible power. Maximum torque of 15.0 in-lbs. is generated between 60-1200 RPM and 3.0 in-lbs. is provided at speeds from 1200-6000 RPM and includes automatic overload protection. This stirrer is quiet, dependable, maintenance-free and ideal for continuous use. The stirrer includes the motor, 3/8" capacity chuck, chuck guard, chuck key, 1/2" x 5" support rod, power cord, and calibration certificate. Stands or "C" clamps and mounting rod support clamps are available in our product line to assist with different mounting options for this stirrer and are sold separately.
Motor
Horsepower | 1/5 |
Motor Type | Electric |
Mount
Features | 1/2" X 5" support rod |
General
Warranty | 3-yr manufacturer's warranty against defects - repair or replace. |
Weight | 15.000000000 |
FOB | New Albany, IN |
Model Number: DC6015
The DC6015 high-torque stirrer is designed specifically to meet the demands of heavy industrial use and is rated for batches up to 6.6 gal (25 liters). This powerful stirrer can be used with viscosities up to 20000 cps. The electric 1/5 HP brushless direct-current motor offers a unique two-speed transmission providing incredible power. Maximum torque of 15.0 in-lbs. is generated between 60-1200 RPM and 3.0 in-lbs. is provided at speeds from 1200-6000 RPM and includes automatic overload protection. This stirrer is quiet, dependable, maintenance-free and ideal for continuous use. The stirrer includes the motor, 3/8" capacity chuck, chuck guard, chuck key, 1/2" x 5" support rod, power cord, and calibration certificate. Stands or "C" clamps and mounting rod support clamps are available in our product line to assist with different mounting options for this stirrer and are sold separately.
Motor
Horsepower | 1/5 |
Motor Type | Electric |
Mount
Features | 1/2" X 5" support rod |
General
Warranty | 3-yr manufacturer's warranty against defects - repair or replace. |
Weight | 15.000000000 |
FOB | New Albany, IN |
