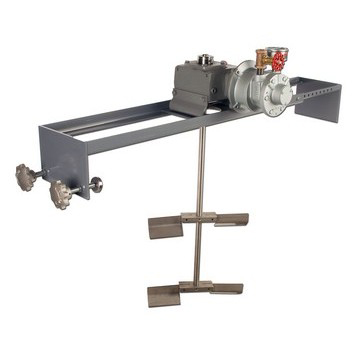

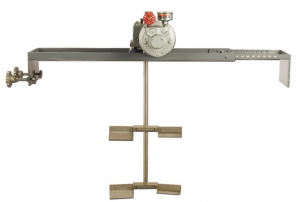

1-1/2 HP Air Gear Drive Tote Mixer Adjustable Bracket
Model Number: BGF-150A
Part Number: 21A5007
The BGF Series is our gear reduced version of the IBC tote bracket mixer. It is ideal for mixing medium to heavy viscosity materials such as slurries, polymers, inks and coatings or for suspending settled particles. The 1-1/2 HP air motor provides maximum agitation when supplied with 100 PSI @ 70 CFM. See our air motor performance guide for operation at lower air flow. The gear reduction delivers 40-400 RPM at higher torque than a direct drive mixer. The low-profile configuration allows operation in areas with low overhead clearance. The 36" long mixing shaft attaches to a coupler and two 12" collapsible impellers with set screws. The impellers are designed to enter 6" tote openings and open to 12" when in operation. This bracket mount fits totes between 34" and 48" wide. All wetted parts are stainless steel for chemical resistance. This model features a Gast air motor which is known for its rugged construction and reliability. Variable speed with air motors offers flexibility for mixing in multiple applications. Air motors are also a lighter weight option than our electric models. Non-electrical operation reduces the possibility of explosion in a combustible environment.

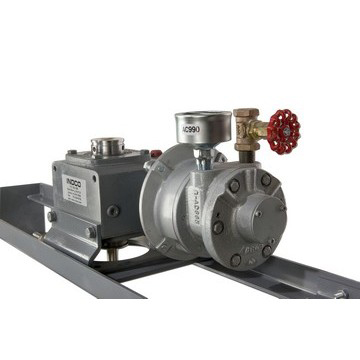

Motor
| Horsepower | 1-1/2 |
| MotorRPM | 300-3000 |
| Motor Type | Air |
| Gast Model | 4AM-NRV-50C |
| Boston Model or Equivalent | HF718R-7.5Z-B5-H-P12 |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Reversible |
| Air Requirements | 100 PSI @ 70 CFM |
| Air Inlet Size | 1/4" |
| Drive | Gear Reduced |
| Gearbox Ratio | 7.5:1 |
| Gearbox Design | Right Angle |
Impeller
| Quantity | 2 |
| Diameter | 12" |
| Style | Folding |
| Bore | 3/4" |
| Rotation | Left Hand |
| Material Construction | 304 Stainless Steel |
| Blade Construction | Laser Cut |
| Set Screw | 2 |
Mount

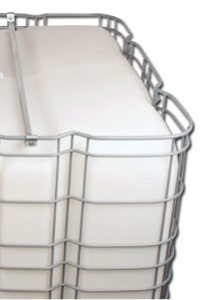

| Adjustable | 34" up to 48" |
| Construction | Steel |
| Features | Two Hand Knobs |
Shaft
| Exposed Dimensions | 3/4" x 36" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 74 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
Model Number: BGF-150A
The BGF Series is our gear reduced version of the IBC tote bracket mixer. It is ideal for mixing medium to heavy viscosity materials such as slurries, polymers, inks and coatings or for suspending settled particles. The 1-1/2 HP air motor provides maximum agitation when supplied with 100 PSI @ 70 CFM. See our air motor performance guide for operation at lower air flow. The gear reduction delivers 40-400 RPM at higher torque than a direct drive mixer. The low-profile configuration allows operation in areas with low overhead clearance. The 36" long mixing shaft attaches to a coupler and two 12" collapsible impellers with set screws. The impellers are designed to enter 6" tote openings and open to 12" when in operation. This bracket mount fits totes between 34" and 48" wide. All wetted parts are stainless steel for chemical resistance. This model features a Gast air motor which is known for its rugged construction and reliability. Variable speed with air motors offers flexibility for mixing in multiple applications. Air motors are also a lighter weight option than our electric models. Non-electrical operation reduces the possibility of explosion in a combustible environment.
Motor
| Horsepower | 1-1/2 |
| MotorRPM | 300-3000 |
| Motor Type | Air |
| Gast Model | 4AM-NRV-50C |
| Boston Model or Equivalent | HF718R-7.5Z-B5-H-P12 |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Reversible |
| Air Requirements | 100 PSI @ 70 CFM |
| Air Inlet Size | 1/4" |
| Drive | Gear Reduced |
| Gearbox Ratio | 7.5:1 |
| Gearbox Design | Right Angle |
Impeller
| Quantity | 2 |
| Diameter | 12" |
| Style | Folding |
| Bore | 3/4" |
| Rotation | Left Hand |
| Material Construction | 304 Stainless Steel |
| Blade Construction | Laser Cut |
| Set Screw | 2 |
Mount
| Adjustable | 34" up to 48" |
| Construction | Steel |
| Features | Two Hand Knobs |
Shaft
| Exposed Dimensions | 3/4" x 36" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 74 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
2 Business Days * Orders in quantity or with other items may extend lead times.
