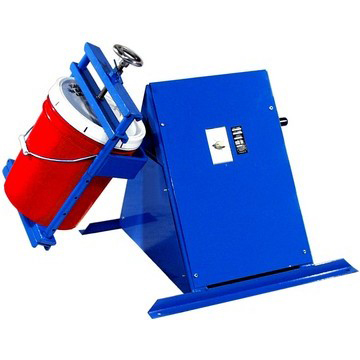

5-Gallon Single Can Explosion Proof Tumbler - 3 Ph
Model Number: 1-305-E3
Part Number: 22S1014
The model 1-305-E3 tumbler accepts containers 4 1/2" to 16 1/2" tall and up to 12 1/2" in diameter and provides an economical, thorough corner-over-corner motion without shaking. The 1/4 HP 230V, 60 Hz explosion proof motor produces 23 rpm in continuous single-direction motion and enables use in Class I, Group D environments. Used with abrasive media, these tumblers can be used for polishing or deburring. They will blend liquid or dry loads in closed 1- to 5-gallon cans.
This unit has base dimensions of 28" X 28". Shipping dimensions are 48" long X 40" wide X 29" high. Shipping weight is 180 lbs.
Motor
| Horsepower | 1/4 |
| Motor Enclosure | Explosion Proof |
| Motor Type | Electric |
| Phase | Three |
| Voltage | 230/460 |
General
| Warranty | 2 Year manufacturer's warranty |
| Weight | 220 |
| Shipping Carrier | LTL Truck |
| Freight Class | 70 |
| FOB | NY |
Model Number: 1-305-E3
The model 1-305-E3 tumbler accepts containers 4 1/2" to 16 1/2" tall and up to 12 1/2" in diameter and provides an economical, thorough corner-over-corner motion without shaking. The 1/4 HP 230V, 60 Hz explosion proof motor produces 23 rpm in continuous single-direction motion and enables use in Class I, Group D environments. Used with abrasive media, these tumblers can be used for polishing or deburring. They will blend liquid or dry loads in closed 1- to 5-gallon cans.
This unit has base dimensions of 28" X 28". Shipping dimensions are 48" long X 40" wide X 29" high. Shipping weight is 180 lbs.
Motor
| Horsepower | 1/4 |
| Motor Enclosure | Explosion Proof |
| Motor Type | Electric |
| Phase | Three |
| Voltage | 230/460 |
General
| Warranty | 2 Year manufacturer's warranty |
| Weight | 220 |
| Shipping Carrier | LTL Truck |
| Freight Class | 70 |
| FOB | NY |
36 Business Days * Orders in quantity or with other items may extend lead times.
