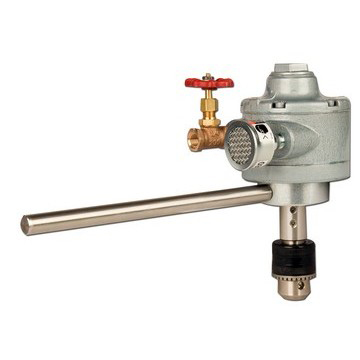

1/3 HP Air Stirrer with Chuck
Model Number: AS1AM
Part Number: 21J1014
Air drive heads are lightweight and offer variable speed for mixing solvents or other flammable materials with less risk than electric models. The rod and ring bracket allows the user to mount the drive head on a stand with a "C" clamp or on a mixing workstation when used with a support clamp. The adjustable chuck mounts to the motor shaft with set screws and accepts up to 3/8" mixing shaft. The 1/3 HP motor provides maximum agitation when supplied with 100 psi @ 21 cfm. See our air motor chart for performance data. This unit is rated for light usage with a maximum torque of 5.5 in-lbs. It features a Gast air motor which is known for its rugged construction and reliability. Variable speed with air motors provides flexibility for mixing in multiple applications. Air motors are also lighter weight than our electric models. Non-electrical operation reduces the possibility of explosion in a combustible environment.
Motor
| Horsepower | 1/3 |
| MotorRPM | 200-10,000 |
| Motor Type | Air |
| Gast Model | 1AM-NCC-12 |
| Motor Frame | Hub |
| Motor Exterior | Painted |
| Rotation Top | Clockwise |
| Air Requirements | 100 PSI @ 21 CFM |
| Air Inlet Size | 1/8" |
Mount
| Construction | Steel |
| Features | 10" long Rod & Ring |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
Model Number: AS1AM
Air drive heads are lightweight and offer variable speed for mixing solvents or other flammable materials with less risk than electric models. The rod and ring bracket allows the user to mount the drive head on a stand with a "C" clamp or on a mixing workstation when used with a support clamp. The adjustable chuck mounts to the motor shaft with set screws and accepts up to 3/8" mixing shaft. The 1/3 HP motor provides maximum agitation when supplied with 100 psi @ 21 cfm. See our air motor chart for performance data. This unit is rated for light usage with a maximum torque of 5.5 in-lbs. It features a Gast air motor which is known for its rugged construction and reliability. Variable speed with air motors provides flexibility for mixing in multiple applications. Air motors are also lighter weight than our electric models. Non-electrical operation reduces the possibility of explosion in a combustible environment.
Motor
| Horsepower | 1/3 |
| MotorRPM | 200-10,000 |
| Motor Type | Air |
| Gast Model | 1AM-NCC-12 |
| Motor Frame | Hub |
| Motor Exterior | Painted |
| Rotation Top | Clockwise |
| Air Requirements | 100 PSI @ 21 CFM |
| Air Inlet Size | 1/8" |
Mount
| Construction | Steel |
| Features | 10" long Rod & Ring |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
2 Business Days * Orders in quantity or with other items may extend lead times.
