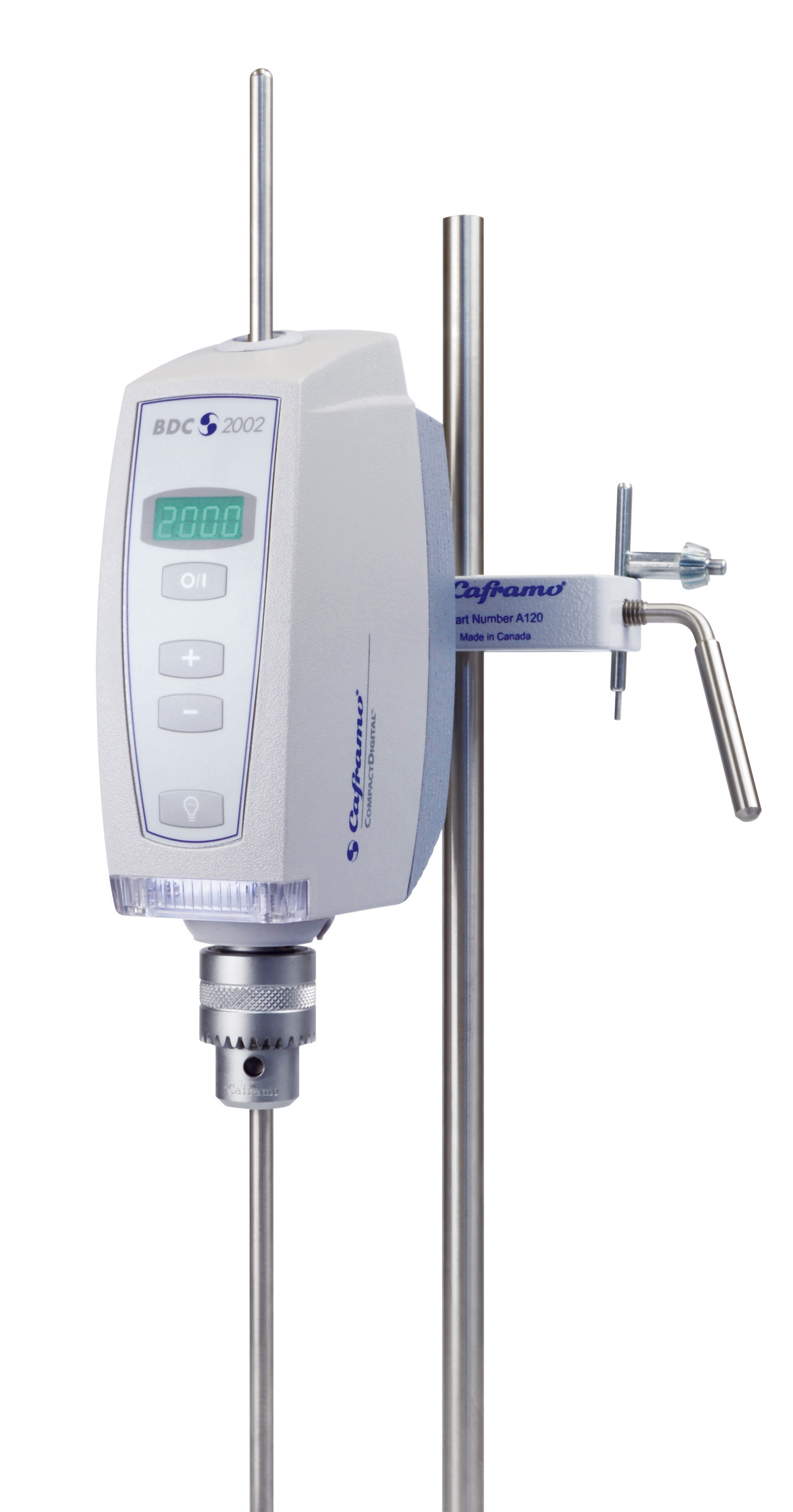

1/18 HP Electric Compact Stirrer
Model Number: BDC2002
Part Number: 22J2006
The BDC2002 compact electric stirrer fits conveniently in laboratory areas including beneath fume hoods or inside enclosed workstations and is rated for batches up to 6.6 gal (25 liters). This powerful stirrer can be used with viscosities up to 15000 cps. The electric 1/18 HP brushless direct-current motor and quiet belt-driven transmission provide maximum torque of 6.2 in-lbs. when operated between 40-2000 RPM and includes automatic overload protection. The LED display and bottom light make monitoring and controlling agitation simple. This stirrer is quiet, dependable, maintenance-free and ideal for continuous use. The stirrer includes the motor, 3/8" capacity chuck, chuck key, 1/2" x 5"support rod, and grounded power cord. Stands or "C" clamps and mounting rod support clamps are available in our product line to assist with different mounting options for this stirrer and are sold separately.
Motor
| Horsepower | 1/18 |
| Motor Enclosure | Brushless DC |
| MotorRPM | 40-2000 |
| Motor Type | Electric |
| Voltage | 120/230 |
| Hertz | 50/60 |
| Tachometer | Yes |
Mount
| Features | 1/2" x 5" mounting rod |
General
| Warranty | 3-yr manufacturer's warranty against defects - repair or replace. |
| Weight | 4 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
Model Number: BDC2002
The BDC2002 compact electric stirrer fits conveniently in laboratory areas including beneath fume hoods or inside enclosed workstations and is rated for batches up to 6.6 gal (25 liters). This powerful stirrer can be used with viscosities up to 15000 cps. The electric 1/18 HP brushless direct-current motor and quiet belt-driven transmission provide maximum torque of 6.2 in-lbs. when operated between 40-2000 RPM and includes automatic overload protection. The LED display and bottom light make monitoring and controlling agitation simple. This stirrer is quiet, dependable, maintenance-free and ideal for continuous use. The stirrer includes the motor, 3/8" capacity chuck, chuck key, 1/2" x 5"support rod, and grounded power cord. Stands or "C" clamps and mounting rod support clamps are available in our product line to assist with different mounting options for this stirrer and are sold separately.
Motor
| Horsepower | 1/18 |
| Motor Enclosure | Brushless DC |
| MotorRPM | 40-2000 |
| Motor Type | Electric |
| Voltage | 120/230 |
| Hertz | 50/60 |
| Tachometer | Yes |
Mount
| Features | 1/2" x 5" mounting rod |
General
| Warranty | 3-yr manufacturer's warranty against defects - repair or replace. |
| Weight | 4 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
