1-1/2 HP Electric Gear Drive Tote Mixer Adjustable Bracket
Model Number: BGF-150T
Part Number: 21A5009

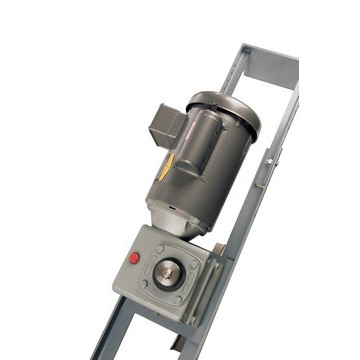

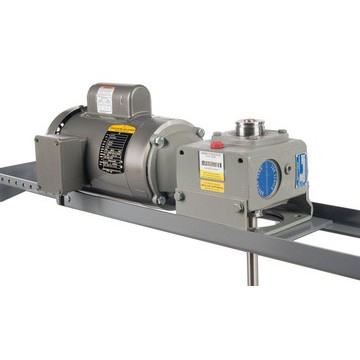

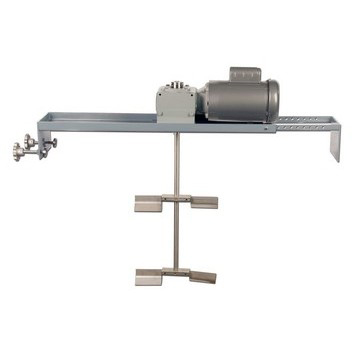

The BGF Series is our gear reduced version of the IBC tote bracket mixer. It is ideal for mixing medium to heavy viscosity materials such as slurries, polymers, inks and coatings or for suspending settled particles. This 1-1/2 HP electric motor model is ready to plug into a standard outlet. The totally-enclosed fan cooled motor requires single phase 115/230 voltage. The gear reduction delivers 230 RPM at higher torque than a direct drive mixer. The low-profile configuration allows operation in areas with low overhead clearance. The 36" long mixing shaft attaches to a coupler and two 14" collapsible impellers with set screws. The impellers are designed to enter 6" tote openings and open to 14" when in operation. This bracket mount fits totes between 34" and 48" wide. All wetted parts are stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
This unit requires shipment via an LTL truck line. Freight collect or prepaid and add.
Motor
| Horsepower | 1-1/2 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | VL3514 |
| Boston Model or Equivalent | HF718R-7.5Z-B5-H-P12 |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 115/230 |
| Hertz | 60 |
| FL Amps | 18/8 |
| ServiceFactor | 1.00 |
| InsulationClass | B |
| Drive | Gear Reduced |
| Gearbox Ratio | 7.5:1 |
| Gearbox Design | Right Angle |
Impeller
| Quantity | 2 |
| Diameter | 14" |
| Style | Folding |
| Bore | 3/4" |
| Rotation | Left Hand |
| Material Construction | 304 Stainless Steel |
| Blade Construction | Laser Cut |
| Set Screw | 2 |
Mount
| Adjustable | 34" up to 48" |
| Construction | Steel |
| Features | Two Hand Knobs |
Shaft
| Exposed Dimensions | 3/4" x 36" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 117 |
| Shipping Carrier | LTL Truck |
| FOB | New Albany, IN |
Model Number: BGF-150T
The BGF Series is our gear reduced version of the IBC tote bracket mixer. It is ideal for mixing medium to heavy viscosity materials such as slurries, polymers, inks and coatings or for suspending settled particles. This 1-1/2 HP electric motor model is ready to plug into a standard outlet. The totally-enclosed fan cooled motor requires single phase 115/230 voltage. The gear reduction delivers 230 RPM at higher torque than a direct drive mixer. The low-profile configuration allows operation in areas with low overhead clearance. The 36" long mixing shaft attaches to a coupler and two 14" collapsible impellers with set screws. The impellers are designed to enter 6" tote openings and open to 14" when in operation. This bracket mount fits totes between 34" and 48" wide. All wetted parts are stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
This unit requires shipment via an LTL truck line. Freight collect or prepaid and add.
Motor
| Horsepower | 1-1/2 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | VL3514 |
| Boston Model or Equivalent | HF718R-7.5Z-B5-H-P12 |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 115/230 |
| Hertz | 60 |
| FL Amps | 18/8 |
| ServiceFactor | 1.00 |
| InsulationClass | B |
| Drive | Gear Reduced |
| Gearbox Ratio | 7.5:1 |
| Gearbox Design | Right Angle |
Impeller
| Quantity | 2 |
| Diameter | 14" |
| Style | Folding |
| Bore | 3/4" |
| Rotation | Left Hand |
| Material Construction | 304 Stainless Steel |
| Blade Construction | Laser Cut |
| Set Screw | 2 |
Mount
| Adjustable | 34" up to 48" |
| Construction | Steel |
| Features | Two Hand Knobs |
Shaft
| Exposed Dimensions | 3/4" x 36" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 117 |
| Shipping Carrier | LTL Truck |
| FOB | New Albany, IN |
2 Business Days * Orders in quantity or with other items may extend lead times.
