4 HP Air Gear Drive Bracket Mount Drum Mixer
Model Number: BM-4A
Part Number: 21A5015

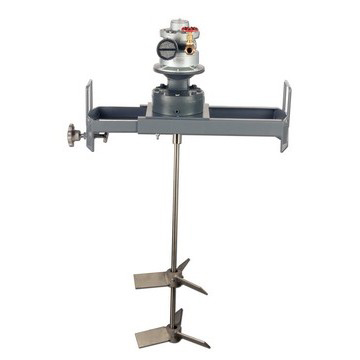

INDCO's rugged heavy duty BM series mixer is gear reduced and runs 60-600 RPM providing the torque necessary for mixing medium to heavy viscosity materials. The 4 HP air motor is the largest in this product line and provides maximum agitation when supplied with 100 PSI @ 130 CFM. See our air motor performance guide for operation at lower air flow. The sturdy steel bracket is adjustable to fit containers 18" to 31". The 30" long shaft attaches to the motor coupler and two 10" axial impellers with set screws. All wetted parts are 316 stainless steel construction. This model features a Gast air motor which is known for its rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.
Motor
| Horsepower | 4 |
| MotorRPM | 300-3000 |
| Motor Type | Air |
| Gast Model | 6AM-NRV-11A |
| IPTS Model | RPQ25:1-56C |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Reversible |
| Air Requirements | 100 PSI @ 130 CFM |
| Air Inlet Size | 1/2" |
| Drive | Gear Reduced |
| Gearbox Ratio | 5:1 |
| Gearbox RPM | 60-600 |
Impeller
| Quantity | 2 |
| Diameter | 10" |
| Style | 3-Blade Axial Flow Turbine |
| Bore | 5/8" |
| Rotation | Left Hand |
| Pitch | 45 Degree |
| Material Construction | 316 Stainless Steel |
| Blade Construction | Welded |
| Set Screw | 2 |
Mount
| Adjustable | 18" up to 31" |
| Construction | Steel |
| Features | Two Hand Knobs |
Shaft
| Exposed Dimensions | 5/8" x 30" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 68 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
Model Number: BM-4A
INDCO's rugged heavy duty BM series mixer is gear reduced and runs 60-600 RPM providing the torque necessary for mixing medium to heavy viscosity materials. The 4 HP air motor is the largest in this product line and provides maximum agitation when supplied with 100 PSI @ 130 CFM. See our air motor performance guide for operation at lower air flow. The sturdy steel bracket is adjustable to fit containers 18" to 31". The 30" long shaft attaches to the motor coupler and two 10" axial impellers with set screws. All wetted parts are 316 stainless steel construction. This model features a Gast air motor which is known for its rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.
Motor
| Horsepower | 4 |
| MotorRPM | 300-3000 |
| Motor Type | Air |
| Gast Model | 6AM-NRV-11A |
| IPTS Model | RPQ25:1-56C |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Reversible |
| Air Requirements | 100 PSI @ 130 CFM |
| Air Inlet Size | 1/2" |
| Drive | Gear Reduced |
| Gearbox Ratio | 5:1 |
| Gearbox RPM | 60-600 |
Impeller
| Quantity | 2 |
| Diameter | 10" |
| Style | 3-Blade Axial Flow Turbine |
| Bore | 5/8" |
| Rotation | Left Hand |
| Pitch | 45 Degree |
| Material Construction | 316 Stainless Steel |
| Blade Construction | Welded |
| Set Screw | 2 |
Mount
| Adjustable | 18" up to 31" |
| Construction | Steel |
| Features | Two Hand Knobs |
Shaft
| Exposed Dimensions | 5/8" x 30" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 68 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
2 Business Days * Orders in quantity or with other items may extend lead times.
