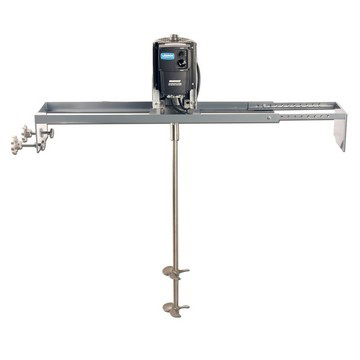

1 HP Variable Speed Electric Direct Drive IBC Tote Mixer Adjustable Bracket
Model Number: BT-11V
Part Number: 21A5035
The BT Series, our best-selling IBC tote mixer, is your most economical solution for mixing totes of material with light to medium viscosity. The 1 HP electric motor model is ready to plug into a standard outlet. This Totally-Enclosed Fan Cooled Motor requires single phase 115 voltage. The variable speed control provides 35-1750 RPM. The 32" long mixing shaft attaches to a coupler and two 5" impellers with set screws. This bracket mount mixer fits totes between 34" and 48" wide. The variable speed provides the user with precise control of agitation levels. All wetted parts are stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
This unit requires shipment via an LTL truck line. Freight collect or prepaid and add.
Motor
| Horsepower | 1 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | CDP3445 |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 90 |
| InsulationClass | F |
| Drive | Direct |
Impeller
| Quantity | 2 |
| Diameter | 5" |
| Style | 3-Blade Square Pitch |
| Bore | 3/4" |
| Rotation | Left Hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 1 |
Mount
| Adjustable | 34" up to 48" |
| Construction | Steel |
| Features | Two Hand Knobs |
Shaft
| Exposed Dimensions | 3/4" x 32" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 123 |
| Shipping Carrier | Small Parcel |
| Freight Class | 70 |
| FOB | New Albany, IN |
Model Number: BT-11V
The BT Series, our best-selling IBC tote mixer, is your most economical solution for mixing totes of material with light to medium viscosity. The 1 HP electric motor model is ready to plug into a standard outlet. This Totally-Enclosed Fan Cooled Motor requires single phase 115 voltage. The variable speed control provides 35-1750 RPM. The 32" long mixing shaft attaches to a coupler and two 5" impellers with set screws. This bracket mount mixer fits totes between 34" and 48" wide. The variable speed provides the user with precise control of agitation levels. All wetted parts are stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
This unit requires shipment via an LTL truck line. Freight collect or prepaid and add.
Motor
| Horsepower | 1 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | CDP3445 |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 90 |
| InsulationClass | F |
| Drive | Direct |
Impeller
| Quantity | 2 |
| Diameter | 5" |
| Style | 3-Blade Square Pitch |
| Bore | 3/4" |
| Rotation | Left Hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 1 |
Mount
| Adjustable | 34" up to 48" |
| Construction | Steel |
| Features | Two Hand Knobs |
Shaft
| Exposed Dimensions | 3/4" x 32" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 123 |
| Shipping Carrier | Small Parcel |
| Freight Class | 70 |
| FOB | New Albany, IN |
2 Business Days * Orders in quantity or with other items may extend lead times.
