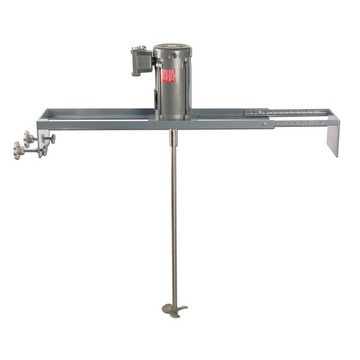

1-1/2 HP Electric Explosion Proof Direct Drive IBC Tote Mixer Adjustable Bracket
Model Number: BT-15E
Part Number: 21A5042
The BT Series, our best-selling IBC tote mixer, is your most economical solution for mixing totes of material with light to medium viscosity. This 1-1/2 HP electric motor model is equipped with motor leads only. The explosion proof motor requires single phase 115/230 volt. The 36" long mixing shaft attaches to a coupler and 6" impeller with set screws. The bracket mount fits totes between 34" and 48" wide. All wetted parts are stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
This unit requires shipment via an LTL truck line. Freight collect or prepaid and add.
Motor
| Horsepower | 1-1/2 |
| Motor Enclosure | Explosion Proof |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | VL5024A |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Phase | Single |
| Voltage | 115/230 |
| Hertz | 60 |
| FL Amps | 16/8 |
| ServiceFactor | 1.00 |
| InsulationClass | B |
| Drive | Direct |
Impeller
| Quantity | 1 |
| Diameter | 6" |
| Style | 3-Blade Square Pitch |
| Bore | 3/4" |
| Rotation | Left Hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 1 |
Mount
| Adjustable | 34" up to 48" |
| Construction | Steel |
| Features | Two Hand Knobs |
Shaft
| Exposed Dimensions | 3/4" x 36" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | LTL Truck |
| Freight Class | 70 |
| FOB | New Albany, IN |
Model Number: BT-15E
The BT Series, our best-selling IBC tote mixer, is your most economical solution for mixing totes of material with light to medium viscosity. This 1-1/2 HP electric motor model is equipped with motor leads only. The explosion proof motor requires single phase 115/230 volt. The 36" long mixing shaft attaches to a coupler and 6" impeller with set screws. The bracket mount fits totes between 34" and 48" wide. All wetted parts are stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
This unit requires shipment via an LTL truck line. Freight collect or prepaid and add.
Motor
| Horsepower | 1-1/2 |
| Motor Enclosure | Explosion Proof |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | VL5024A |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Phase | Single |
| Voltage | 115/230 |
| Hertz | 60 |
| FL Amps | 16/8 |
| ServiceFactor | 1.00 |
| InsulationClass | B |
| Drive | Direct |
Impeller
| Quantity | 1 |
| Diameter | 6" |
| Style | 3-Blade Square Pitch |
| Bore | 3/4" |
| Rotation | Left Hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 1 |
Mount
| Adjustable | 34" up to 48" |
| Construction | Steel |
| Features | Two Hand Knobs |
Shaft
| Exposed Dimensions | 3/4" x 36" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | LTL Truck |
| Freight Class | 70 |
| FOB | New Albany, IN |
2 Business Days * Orders in quantity or with other items may extend lead times.
