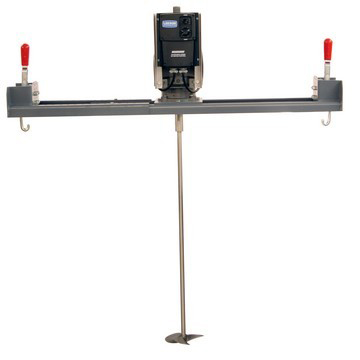

1 HP Variable Speed Electric Direct Drive IBC Tote Mixer Deluxe Adjustable Bracket
Model Number: BTC-11V
Part Number: 21A5326
INDCO's Deluxe IBC Tote Mixer offers enhanced features for operational efficiency and ergonomics. The toggle feature hooks directly to various cage sizes reducing installation and changeover times. Optional handling features are available including lifting eye and forklift channels. This 1 HP electric motor model is ready to plug into a standard outlet. The totally-enclosed fan cooled motor requires single phase 115 voltage. The variable speed control allows this mixer to provide 35-1750 RPM. The 32" long mixing shaft attaches to the motor coupler and two 5" impellers with set screws. The expandable bracket mount fits totes between 34" and 48" wide. This BTC Series mixer is designed for blending light to medium viscosity materials or suspending settled particles in a variety of applications. All wetted parts are stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
Motor
| Horsepower | 1 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | CDP3445 |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 90 |
| InsulationClass | F |
| Drive | Direct |
Impeller
| Quantity | 2 |
| Diameter | 5" |
| Style | 3-Blade Square Pitch |
| Bore | 3/4" |
| Rotation | Left Hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 1 |
Mount
| Adjustable | 34" up to 48" |
| Construction | Steel |
| Features | Adjustable Toggle Clamps |
Shaft
| Exposed Dimensions | 3/4" x 32" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
Model Number: BTC-11V
INDCO's Deluxe IBC Tote Mixer offers enhanced features for operational efficiency and ergonomics. The toggle feature hooks directly to various cage sizes reducing installation and changeover times. Optional handling features are available including lifting eye and forklift channels. This 1 HP electric motor model is ready to plug into a standard outlet. The totally-enclosed fan cooled motor requires single phase 115 voltage. The variable speed control allows this mixer to provide 35-1750 RPM. The 32" long mixing shaft attaches to the motor coupler and two 5" impellers with set screws. The expandable bracket mount fits totes between 34" and 48" wide. This BTC Series mixer is designed for blending light to medium viscosity materials or suspending settled particles in a variety of applications. All wetted parts are stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
Motor
| Horsepower | 1 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | CDP3445 |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 90 |
| InsulationClass | F |
| Drive | Direct |
Impeller
| Quantity | 2 |
| Diameter | 5" |
| Style | 3-Blade Square Pitch |
| Bore | 3/4" |
| Rotation | Left Hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 1 |
Mount
| Adjustable | 34" up to 48" |
| Construction | Steel |
| Features | Adjustable Toggle Clamps |
Shaft
| Exposed Dimensions | 3/4" x 32" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
2 Business Days * Orders in quantity or with other items may extend lead times.
