1-1/2 HP Electric Explosion Proof Direct Drive IBC Tote Mixer Deluxe Adjustable Bracket
Model Number: BTC-15E
Part Number: 21A5320

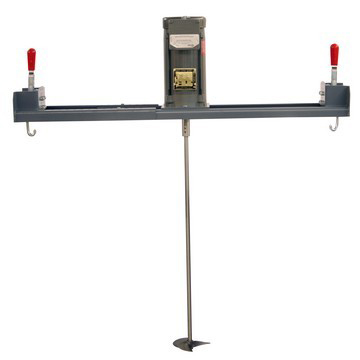

INDCO's Deluxe IBC Tote Mixer offers enhanced features for operational efficiency and ergonomics. The toggle feature hooks directly to various cage sizes reducing installation and changeover times. Optional handling features are available including lifting eye and forklift channels. This 1 1/2 HP electric motor model is equipped with motor leads only. The explosion proof motor requires single phase 115/230 voltage. The 36" long mixing shaft attaches to the motor coupler and one 6" impellers with set screws. The expandable bracket mount fits totes between 34" and 48" wide. This BTC Series mixer is designed for blending light to medium viscosity materials or suspending settled particles in a variety of applications. All wetted parts are made of stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
Motor
| Horsepower | 1-1/2 |
| Motor Enclosure | Explosion Proof |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | VL5024A |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Phase | Single |
| Voltage | 115/230 |
| Hertz | 60 |
| FL Amps | 16/8 |
| ServiceFactor | 1.00 |
| InsulationClass | B |
| Drive | Direct |
Impeller
| Quantity | 1 |
| Diameter | 6" |
| Style | 3-Blade Square Pitch |
| Bore | 3/4" |
| Rotation | Left Hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 1 |
Mount
| Adjustable | 34" up to 48" |
| Construction | Steel |
| Features | Adjustable Toggle Clamps |
Shaft
| Exposed Dimensions | 3/4" x 36" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | LTL Truck |
| Freight Class | 70 |
| FOB | New Albany, IN |
