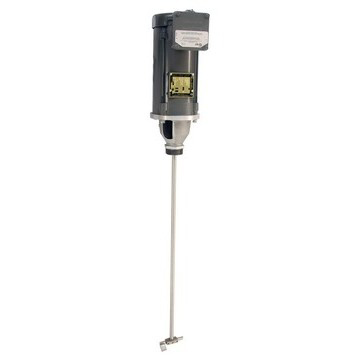

1/2 HP Explosion Proof Electric Direct Drive Drum Bung Hole Mount Mixer
Model Number: BU5-E
Part Number: 21A5104
INDCO's BU series mixers are designed for use on a closed steel drum of low to medium viscosity materials. The bung drum mount quickly and easily screws into a 2" drum lid bung hole. This 1-1/2 HP electric motor model is equipped with motor leads only. The explosion proof motor requires single phase 115/230 voltage. The collapsible impeller fits through the 2" opening and expands to 4" in diameter when in operation. The 32" long mixing shaft attaches to the motor coupler and 4" impeller with set screws. All wetted parts are made of stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
Motor
| Horsepower | 1/2 |
| Motor Enclosure | Explosion Proof |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | VL5004A |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Phase | Single |
| Voltage | 115/230 |
| Hertz | 60 |
| FL Amps | 7.4:3.9-3.7 |
| ServiceFactor | 1.00 |
| InsulationClass | B |
| Drive | Direct |
Impeller
| Quantity | 1 |
| Diameter | 4" |
| Style | Folding |
| Bore | 5/8" |
| Rotation | Left Hand |
| Material Construction | 304 Stainless Steel |
| Blade Construction | Laser Cut |
| Set Screw | 2 |
Mount
| Adjustable | 2" NPT |
| Construction | Aluminum |
| Features | Side Slot to reach motor coupler set screws |
Shaft
| Exposed Dimensions | 5/8" x 30" |
| Construction | 316 Construction |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 46.000000000 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
Model Number: BU5-E
INDCO's BU series mixers are designed for use on a closed steel drum of low to medium viscosity materials. The bung drum mount quickly and easily screws into a 2" drum lid bung hole. This 1-1/2 HP electric motor model is equipped with motor leads only. The explosion proof motor requires single phase 115/230 voltage. The collapsible impeller fits through the 2" opening and expands to 4" in diameter when in operation. The 32" long mixing shaft attaches to the motor coupler and 4" impeller with set screws. All wetted parts are made of stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
Motor
| Horsepower | 1/2 |
| Motor Enclosure | Explosion Proof |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | VL5004A |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Phase | Single |
| Voltage | 115/230 |
| Hertz | 60 |
| FL Amps | 7.4:3.9-3.7 |
| ServiceFactor | 1.00 |
| InsulationClass | B |
| Drive | Direct |
Impeller
| Quantity | 1 |
| Diameter | 4" |
| Style | Folding |
| Bore | 5/8" |
| Rotation | Left Hand |
| Material Construction | 304 Stainless Steel |
| Blade Construction | Laser Cut |
| Set Screw | 2 |
Mount
| Adjustable | 2" NPT |
| Construction | Aluminum |
| Features | Side Slot to reach motor coupler set screws |
Shaft
| Exposed Dimensions | 5/8" x 30" |
| Construction | 316 Construction |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 46.000000000 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
