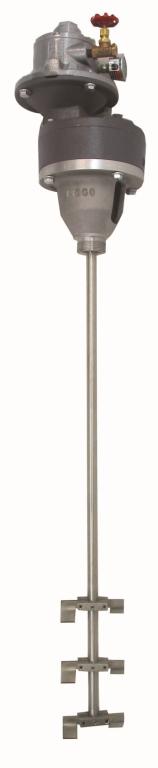

1-1/2 HP Air Gear Drive Drum Bung Hole Mount Mixer
Model Number: BUG-1A
Part Number: 21A5113
INDCO's BUG series mixers are designed for use on a closed steel drum. These heavy duty models feature a 5:1 ratio gearbox and will mix medium to high viscosity materials such as heavy paints, resins and polymers as well as suspend settled materials. The bung drum mount quickly and easily screws into a 2" drum lid bung hole. The 1-1/2 HP air motor provides maximum agitation when supplied with 100 PSI @ 70 CFM. See our air motor performance guide for operation at lower air flow. The air flow valve allows speed control from 60-600 RPM. The collapsible impellers fit through the 2" opening and expand to 4" in diameter when in operation. The 32" long mixing shaft attaches to the motor coupler and three 4" impellers with set screws. All wetted parts are made of stainless steel for chemical resistance. This model features a Gast air motor which is known for its rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment. DRUM LID NOT INCLUDED.
Motor
| Horsepower | 1-1/2 |
| MotorRPM | 300-3000 |
| Motor Type | Air |
| Gast Model | 4AM-NRV-50C |
| IPTS Model | RPQ1-5-56C |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Reversible |
| Air Requirements | 100 PSI @ 70 CFM |
| Air Inlet Size | 1/4" |
| Drive | Gear Reduced |
| Gearbox Ratio | 5:1 |
| Gearbox RPM | 60-600 |
Impeller
| Quantity | 3 |
| Diameter | 4" |
| Style | Folding |
| Bore | 5/8" |
| Rotation | Left Hand |
| Material Construction | 304 Stainless Steel |
| Blade Construction | Laser Cut |
| Set Screw | 2 |
Mount
| Adjustable | 2" NPT |
| Construction | Aluminum |
| Features | Quick Mounting |
Shaft
| Exposed Dimensions | 5/8" x 30" |
| Construction | 316 Construction |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
Model Number: BUG-1A
INDCO's BUG series mixers are designed for use on a closed steel drum. These heavy duty models feature a 5:1 ratio gearbox and will mix medium to high viscosity materials such as heavy paints, resins and polymers as well as suspend settled materials. The bung drum mount quickly and easily screws into a 2" drum lid bung hole. The 1-1/2 HP air motor provides maximum agitation when supplied with 100 PSI @ 70 CFM. See our air motor performance guide for operation at lower air flow. The air flow valve allows speed control from 60-600 RPM. The collapsible impellers fit through the 2" opening and expand to 4" in diameter when in operation. The 32" long mixing shaft attaches to the motor coupler and three 4" impellers with set screws. All wetted parts are made of stainless steel for chemical resistance. This model features a Gast air motor which is known for its rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment. DRUM LID NOT INCLUDED.
Motor
| Horsepower | 1-1/2 |
| MotorRPM | 300-3000 |
| Motor Type | Air |
| Gast Model | 4AM-NRV-50C |
| IPTS Model | RPQ1-5-56C |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Reversible |
| Air Requirements | 100 PSI @ 70 CFM |
| Air Inlet Size | 1/4" |
| Drive | Gear Reduced |
| Gearbox Ratio | 5:1 |
| Gearbox RPM | 60-600 |
Impeller
| Quantity | 3 |
| Diameter | 4" |
| Style | Folding |
| Bore | 5/8" |
| Rotation | Left Hand |
| Material Construction | 304 Stainless Steel |
| Blade Construction | Laser Cut |
| Set Screw | 2 |
Mount
| Adjustable | 2" NPT |
| Construction | Aluminum |
| Features | Quick Mounting |
Shaft
| Exposed Dimensions | 5/8" x 30" |
| Construction | 316 Construction |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
2 Business Days * Orders in quantity or with other items may extend lead times.
