1/2 HP Electric Gear Drive Drum Bung Hole Mount Mixer
Model Number: BUG-5T
Part Number: 21A5125

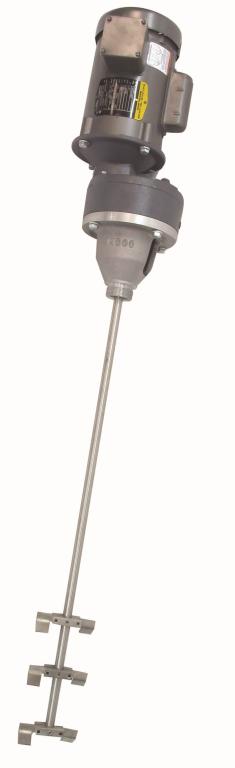

INDCO's BUG series mixers are designed for use on a closed steel drum. These heavy duty models feature a 5:1 ratio gearbox and will mix medium to high viscosity materials such as heavy paints, resins and polymers as well as suspend settled materials. The bung drum mount quickly and easily screws into a 2" drum lid bung hole. This 1/2 HP electric motor model is ready to plug into a standard outlet. The totally-enclosed fan cooled motor delivers 1750 RPM and requires single phase 115/230 voltage. The collapsible impellers fit through the 2" opening and expand to 4" in diameter when in operation. The 32" long mixing shaft attaches to the motor coupler and three 4" impellers with set screws. All wetted parts are made of stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
Motor
| Horsepower | 1/2 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | VL3504 |
| IPTS Model | RPQ1-5-56C |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 115/230 |
| Hertz | 60 |
| FL Amps | 7.4:3.7 |
| ServiceFactor | 1.00 |
| InsulationClass | B |
| Drive | Gear Reduced |
| Gearbox Ratio | 5:1 |
| Gearbox RPM | 350 |
Impeller
| Quantity | 3 |
| Diameter | 4" |
| Style | Folding |
| Bore | 5/8" |
| Rotation | Left Hand |
| Material Construction | 304 Stainless Steel |
| Blade Construction | Laser Cut |
| Set Screw | 2 |
Mount
| Adjustable | 2" NPT |
| Construction | Aluminum |
| Features | Side Slot to reach motor coupler set screws |
Shaft
| Exposed Dimensions | 5/8" x 30" |
| Construction | 316 Construction |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
