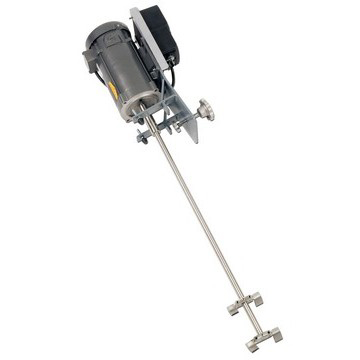

3/4 HP Variable Speed Electric Direct Drive Drum Bung Hole Entering Clamp Mixer
Model Number: CB7-V
Part Number: 21A5162
INDCO's CB series mixers are designed for use on either a closed or open steel drum of low to medium viscosity materials. The unique clamp adjusts to the rim of the drum with the hand knob and sits at an angle such that it will enter through a 2" drum lid bung. This 3/4 HP electric motor model is ready to plug into a standard outlet. The totally-enclosed fan cooled motor requires single phase 115 voltage. The variable speed control provides 35-1750 RPM. The collapsible impeller fits through the 2" opening and expands to 4" in diameter when in operation. The 32" long mixing shaft attaches to the motor coupler and two 4" impellers with set screws. All wetted parts are made of stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
Motor
| Horsepower | 3/4 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | CDP3440 |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 90 |
| InsulationClass | F |
| Drive | Direct |
Impeller
| Quantity | 2 |
| Diameter | 4" |
| Style | Folding |
| Bore | 5/8" |
| Rotation | Left Hand |
| Material Construction | 304 Stainless Steel |
| Blade Construction | Laser Cut |
| Set Screw | 2 |
Mount
| Adjustable | Hand Knob |
| Construction | Steel |
| Features | steel drum rim required to clamp - allows to be inserted into closed or open drums |
Shaft
| Exposed Dimensions | 5/8" x 32" |
| Construction | 316 Construction |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
Model Number: CB7-V
INDCO's CB series mixers are designed for use on either a closed or open steel drum of low to medium viscosity materials. The unique clamp adjusts to the rim of the drum with the hand knob and sits at an angle such that it will enter through a 2" drum lid bung. This 3/4 HP electric motor model is ready to plug into a standard outlet. The totally-enclosed fan cooled motor requires single phase 115 voltage. The variable speed control provides 35-1750 RPM. The collapsible impeller fits through the 2" opening and expands to 4" in diameter when in operation. The 32" long mixing shaft attaches to the motor coupler and two 4" impellers with set screws. All wetted parts are made of stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
Motor
| Horsepower | 3/4 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | CDP3440 |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 90 |
| InsulationClass | F |
| Drive | Direct |
Impeller
| Quantity | 2 |
| Diameter | 4" |
| Style | Folding |
| Bore | 5/8" |
| Rotation | Left Hand |
| Material Construction | 304 Stainless Steel |
| Blade Construction | Laser Cut |
| Set Screw | 2 |
Mount
| Adjustable | Hand Knob |
| Construction | Steel |
| Features | steel drum rim required to clamp - allows to be inserted into closed or open drums |
Shaft
| Exposed Dimensions | 5/8" x 32" |
| Construction | 316 Construction |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
