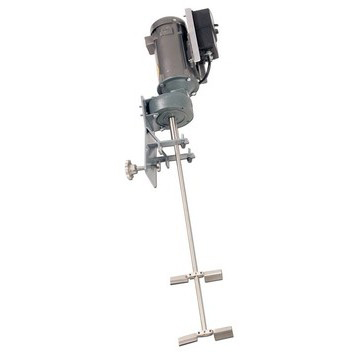

1/3 HP Variable Speed Electric Gear Drive Drum Bung Hole Entering Clamp Mixer
Model Number: CBG-3V
Part Number: 21A5146
INDCO's CBG series mixers, featuring a 5:1 gear ratio, are designed for use on either a closed or open steel drum of medium to high viscosity materials such as heavy paints, resins and polymers. The unique clamp adjusts to the rim of the drum with the hand knob and sits at an angle such that it will enter through a 2" drum lid bung. This 1/3 HP electric motor model is ready to plug into a standard outlet. The totally-enclosed fan cooled motor requires single phase 115 voltage. The variable speed control provides 35-1750 RPM. The collapsible impellers fit through the 2" opening and expand to 7" in diameter when in operation. The 32" long mixing shaft attaches to the motor coupler and two 7" impellers with set screws. All wetted parts are made of stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
Motor
Horsepower | 1/3 |
Motor Enclosure | Totally Enclosed Non Ventilated |
MotorRPM | 1750 |
Motor Type | Electric |
Baldor Model or Equivalent | CDP3320 |
IPTS Model | RPQ1-5-56C |
Motor Frame | 56C Face |
Motor Exterior | Painted |
Rotation Top | Wired Clockwise |
Phase | Single |
Voltage | 90 |
Hertz | 60 |
InsulationClass | F |
Drive | Gear Reduced |
Gearbox Ratio | 5:1 |
Gearbox RPM | 0-350 |
Impeller
Quantity | 2 |
Diameter | 7" |
Style | Folding |
Bore | 5/8" |
Rotation | Left Hand |
Material Construction | 304 Stainless Steel |
Blade Construction | Laser Cut |
Set Screw | 2 |
Mount
Adjustable | Hand Knob |
Construction | Steel |
Features | steel drum rim required to clamp - allows to be inserted into closed or open drums |
Shaft
Exposed Dimensions | 5/8" x 32" |
Construction | 316 Construction |
General
Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
Shipping Carrier | Small Parcel |
FOB | New Albany, IN |
Model Number: CBG-3V
INDCO's CBG series mixers, featuring a 5:1 gear ratio, are designed for use on either a closed or open steel drum of medium to high viscosity materials such as heavy paints, resins and polymers. The unique clamp adjusts to the rim of the drum with the hand knob and sits at an angle such that it will enter through a 2" drum lid bung. This 1/3 HP electric motor model is ready to plug into a standard outlet. The totally-enclosed fan cooled motor requires single phase 115 voltage. The variable speed control provides 35-1750 RPM. The collapsible impellers fit through the 2" opening and expand to 7" in diameter when in operation. The 32" long mixing shaft attaches to the motor coupler and two 7" impellers with set screws. All wetted parts are made of stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
Motor
Horsepower | 1/3 |
Motor Enclosure | Totally Enclosed Non Ventilated |
MotorRPM | 1750 |
Motor Type | Electric |
Baldor Model or Equivalent | CDP3320 |
IPTS Model | RPQ1-5-56C |
Motor Frame | 56C Face |
Motor Exterior | Painted |
Rotation Top | Wired Clockwise |
Phase | Single |
Voltage | 90 |
Hertz | 60 |
InsulationClass | F |
Drive | Gear Reduced |
Gearbox Ratio | 5:1 |
Gearbox RPM | 0-350 |
Impeller
Quantity | 2 |
Diameter | 7" |
Style | Folding |
Bore | 5/8" |
Rotation | Left Hand |
Material Construction | 304 Stainless Steel |
Blade Construction | Laser Cut |
Set Screw | 2 |
Mount
Adjustable | Hand Knob |
Construction | Steel |
Features | steel drum rim required to clamp - allows to be inserted into closed or open drums |
Shaft
Exposed Dimensions | 5/8" x 32" |
Construction | 316 Construction |
General
Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
Shipping Carrier | Small Parcel |
FOB | New Albany, IN |
2 Business Days * Orders in quantity or with other items may extend lead times.
