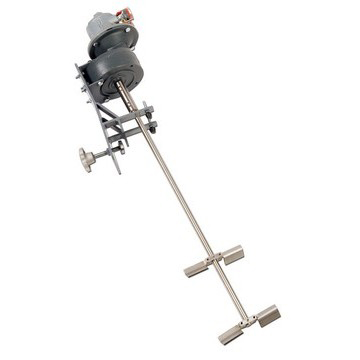

3/4 HP Air Gear Drive Drum Bung Hole Entering Clamp Mixer
Model Number: CBG-5A
Part Number: 21A5153
INDCO's CBG series mixers, featuring a 5:1 gear ratio, are designed for use on either a closed or open steel drum of medium to high viscosity materials such as heavy paints, resins and polymers. The unique clamp adjusts to the rim of the drum with the hand knob and sits at an angle such that it will enter through a 2" drum lid bung. The 3/4 HP air motor model provides maximum agitation when supplied with 100 PSI @ 30 CFM. See our air motor performance guide for operation at lower air flow. The air flow valve allows speed control from 60-600 RPM. The collapsible impellers fit through the 2" opening and expand to 7" in diameter when in operation. The 32" long mixing shaft attaches to the motor coupler and two 7" impellers with set screws. All wetted parts are made of stainless steel for chemical resistance. This model features a Gast air motor which is known for its rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.
Motor
| Horsepower | 3/4 |
| MotorRPM | 300-3000 |
| Motor Type | Air |
| Gast Model | 2AM-NRV-90 |
| IPTS Model | RPQ1-5-56C |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Reversible |
| Air Requirements | 100 PSI @ 30 CFM |
| Air Inlet Size | 1/4" |
| Drive | Gear Reduced |
| Gearbox Ratio | 5:1 |
| Gearbox RPM | 60-600 |
Impeller
| Quantity | 2 |
| Diameter | 7" |
| Style | Folding |
| Bore | 5/8" |
| Rotation | Left Hand |
| Material Construction | 304 Stainless Steel |
| Blade Construction | Laser Cut |
| Set Screw | 2 |
Mount
| Adjustable | Hand Knob |
| Construction | Steel |
| Features | steel drum rim required to clamp - allows to be inserted into closed or open drums |
Shaft
| Exposed Dimensions | 5/8" x 32" |
| Construction | 316 Construction |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 46.000000000 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
Model Number: CBG-5A
INDCO's CBG series mixers, featuring a 5:1 gear ratio, are designed for use on either a closed or open steel drum of medium to high viscosity materials such as heavy paints, resins and polymers. The unique clamp adjusts to the rim of the drum with the hand knob and sits at an angle such that it will enter through a 2" drum lid bung. The 3/4 HP air motor model provides maximum agitation when supplied with 100 PSI @ 30 CFM. See our air motor performance guide for operation at lower air flow. The air flow valve allows speed control from 60-600 RPM. The collapsible impellers fit through the 2" opening and expand to 7" in diameter when in operation. The 32" long mixing shaft attaches to the motor coupler and two 7" impellers with set screws. All wetted parts are made of stainless steel for chemical resistance. This model features a Gast air motor which is known for its rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.
Motor
| Horsepower | 3/4 |
| MotorRPM | 300-3000 |
| Motor Type | Air |
| Gast Model | 2AM-NRV-90 |
| IPTS Model | RPQ1-5-56C |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Reversible |
| Air Requirements | 100 PSI @ 30 CFM |
| Air Inlet Size | 1/4" |
| Drive | Gear Reduced |
| Gearbox Ratio | 5:1 |
| Gearbox RPM | 60-600 |
Impeller
| Quantity | 2 |
| Diameter | 7" |
| Style | Folding |
| Bore | 5/8" |
| Rotation | Left Hand |
| Material Construction | 304 Stainless Steel |
| Blade Construction | Laser Cut |
| Set Screw | 2 |
Mount
| Adjustable | Hand Knob |
| Construction | Steel |
| Features | steel drum rim required to clamp - allows to be inserted into closed or open drums |
Shaft
| Exposed Dimensions | 5/8" x 32" |
| Construction | 316 Construction |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 46.000000000 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
