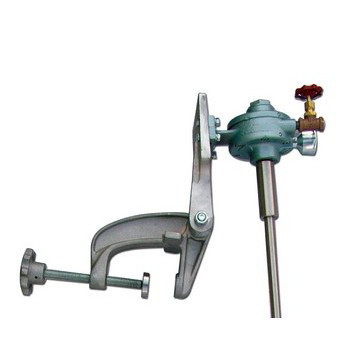

1-1/2 HP Air Direct Drive Economy Clamp Mount Mixer
Model Number: CL1-A
Part Number: 21A6000
INDCO's CL series direct drive mixers are an economical option for mixing drums or small batches of light to medium viscosity materials. The 1-1/2 HP air motor provides maximum agitation when supplied with 100 PSI @ 70 CFM. See our air motor performance guide for operation at lower air flow. The 36" long mixing shaft attaches to the motor coupler and two 4" impellers with set screws. The adjustable clamp allows for vertical positioning of the mixer and tightens to container or stand with hand knob. All wetted parts are stainless steel for chemical resistance. This model features a Gast air motor which is known for its rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.
Motor
| Horsepower | 1-1/2 |
| MotorRPM | 300-3000 |
| Motor Type | Air |
| Gast Model | 4AM-FRV-13C |
| Motor Frame | Foot |
| Motor Exterior | Painted |
| Rotation Top | Reversible |
| Air Requirements | 100 PSI @ 70 CFM |
| Air Inlet Size | 1/4" |
| Drive | Direct |
Impeller
| Quantity | 2 |
| Diameter | 4" |
| Style | 3-Blade Square Pitch |
| Bore | 5/8" |
| Rotation | Left Hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 1 |
Mount
| Adjustable | 90° vertical adjustment |
| Construction | Cast Aluminum |
| Features | Hand Knob |
Shaft
| Exposed Dimensions | 5/8" x 36" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 25 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
Model Number: CL1-A
INDCO's CL series direct drive mixers are an economical option for mixing drums or small batches of light to medium viscosity materials. The 1-1/2 HP air motor provides maximum agitation when supplied with 100 PSI @ 70 CFM. See our air motor performance guide for operation at lower air flow. The 36" long mixing shaft attaches to the motor coupler and two 4" impellers with set screws. The adjustable clamp allows for vertical positioning of the mixer and tightens to container or stand with hand knob. All wetted parts are stainless steel for chemical resistance. This model features a Gast air motor which is known for its rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.
Motor
| Horsepower | 1-1/2 |
| MotorRPM | 300-3000 |
| Motor Type | Air |
| Gast Model | 4AM-FRV-13C |
| Motor Frame | Foot |
| Motor Exterior | Painted |
| Rotation Top | Reversible |
| Air Requirements | 100 PSI @ 70 CFM |
| Air Inlet Size | 1/4" |
| Drive | Direct |
Impeller
| Quantity | 2 |
| Diameter | 4" |
| Style | 3-Blade Square Pitch |
| Bore | 5/8" |
| Rotation | Left Hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 1 |
Mount
| Adjustable | 90° vertical adjustment |
| Construction | Cast Aluminum |
| Features | Hand Knob |
Shaft
| Exposed Dimensions | 5/8" x 36" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 25 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
Documents
- M-M-30108 CL(G)
- Specsht_4AM
- 4amfrv13c
- Service Manual _lubricated_AM_motors
- M-I-20104 Air Motor Manual
Videos
