1 HP Electric Gear Drive Economy Clamp Mount Mixer
Model Number: CLG-1T
Part Number: 21A6038

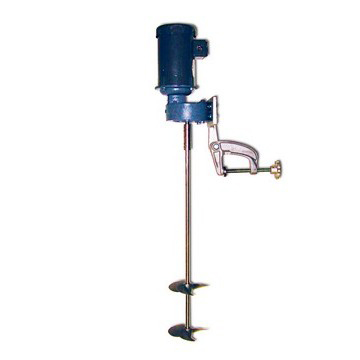

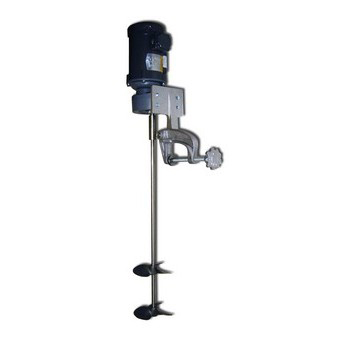

INDCO's CLG series gear drive mixers are an economical option for mixing drums or small batches of medium to high viscosity materials such as heavy paints or polymers at low speeds. This 1 HP electric motor model is ready to plug into a standard outlet. The totally-enclosed fan cooled motor requires single phase 115/230 voltage. The 5:1 ratio gearbox delivers 350 RPM. The 48" long mixing shaft attaches to the motor coupler and two 8" impellers with set screws. The adjustable clamp allows for vertical positioning of the mixer and tightens to container or stand with hand knob. All wetted parts are stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
Motor
| Horsepower | 1 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | VL3510 |
| IPTS Model | RPQ1-5-56C |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 115/230 |
| Hertz | 60 |
| FL Amps | 12.8:6.4 |
| ServiceFactor | 1.00 |
| InsulationClass | F |
| Drive | Gear Reduced |
| Gearbox Ratio | 5:1 |
| Gearbox RPM | 350 |
Impeller
| Quantity | 2 |
| Diameter | 8" |
| Style | 3-Blade Square Pitch |
| Bore | 3/4" |
| Rotation | Left Hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 2 |
Mount
| Adjustable | 90° vertical adjustment |
| Construction | Cast Aluminum |
| Features | Hand Knob |
Shaft
| Exposed Dimensions | 3/4" x 48" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 81 |
| Shipping Carrier | LTL Truck |
| FOB | New Albany, IN |
Model Number: CLG-1T
INDCO's CLG series gear drive mixers are an economical option for mixing drums or small batches of medium to high viscosity materials such as heavy paints or polymers at low speeds. This 1 HP electric motor model is ready to plug into a standard outlet. The totally-enclosed fan cooled motor requires single phase 115/230 voltage. The 5:1 ratio gearbox delivers 350 RPM. The 48" long mixing shaft attaches to the motor coupler and two 8" impellers with set screws. The adjustable clamp allows for vertical positioning of the mixer and tightens to container or stand with hand knob. All wetted parts are stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
Motor
| Horsepower | 1 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | VL3510 |
| IPTS Model | RPQ1-5-56C |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 115/230 |
| Hertz | 60 |
| FL Amps | 12.8:6.4 |
| ServiceFactor | 1.00 |
| InsulationClass | F |
| Drive | Gear Reduced |
| Gearbox Ratio | 5:1 |
| Gearbox RPM | 350 |
Impeller
| Quantity | 2 |
| Diameter | 8" |
| Style | 3-Blade Square Pitch |
| Bore | 3/4" |
| Rotation | Left Hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 2 |
Mount
| Adjustable | 90° vertical adjustment |
| Construction | Cast Aluminum |
| Features | Hand Knob |
Shaft
| Exposed Dimensions | 3/4" x 48" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 81 |
| Shipping Carrier | LTL Truck |
| FOB | New Albany, IN |
1 Business Days * * If ordered before noon EST will ship same day. Orders in quantity or with other items may extend lead times.
