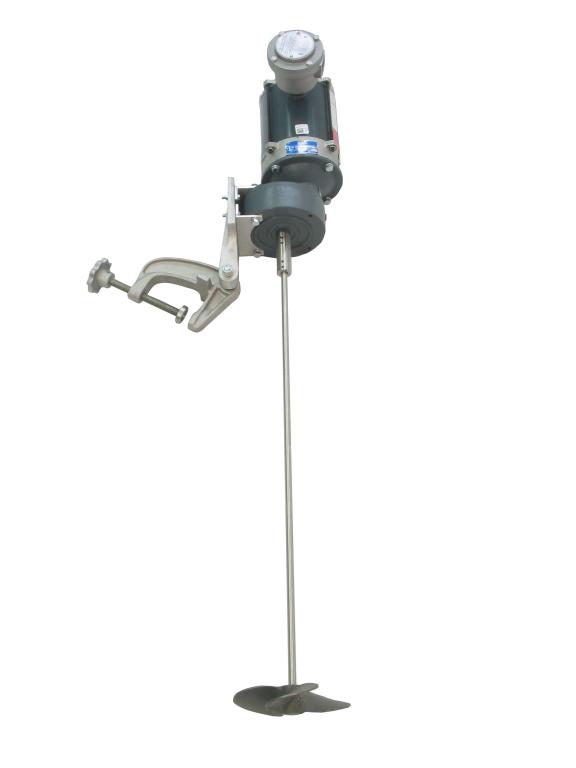

1/4 HP Explosion Proof Electric Gear Drive Economy Clamp Mount Mixer
Model Number: CLG-4E
Part Number: 21A6044
INDCO's CLG series gear drive mixers are an economical option for mixing drums or small batches of medium to high viscosity materials such as heavy paints or polymers at low speeds. This 1/4 HP electric motor model is equipped with motor leads only. The explosion proof motor requires single phase 115/230 voltage. The 5:1 ratio gearbox delivers 350 RPM. The 32" long mixing shaft attaches to the motor coupler and one 6" impeller with set screws. The adjustable clamp allows for vertical positioning of the mixer and tightens to container or stand with hand knob. All wetted parts are stainless steel for chemical resistance. This electric model features a Marathon motor.
Motor
| Horsepower | 1/4 |
| Motor Enclosure | Explosion Proof |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Marathon Model or Equivalent | G852 |
| IPTS Model | RPQ1-5-56C |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Phase | Single |
| Voltage | 115/208-230 |
| Hertz | 60 |
| FL Amps | 4.8:2.3-2.4 |
| ServiceFactor | 1.00 |
| InsulationClass | B |
| Drive | Gear Reduced |
| Gearbox Ratio | 5:1 |
| Gearbox RPM | 0-350 |
Impeller
| Quantity | 1 |
| Diameter | 6" |
| Style | 3-Blade Square Pitch |
| Bore | 5/8" |
| Rotation | Left Hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 2 |
Mount
| Adjustable | 90° vertical adjustment |
| Construction | Cast Aluminum |
| Features | Hand Knob |
Shaft
| Exposed Dimensions | 5/8" x 32" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
Model Number: CLG-4E
INDCO's CLG series gear drive mixers are an economical option for mixing drums or small batches of medium to high viscosity materials such as heavy paints or polymers at low speeds. This 1/4 HP electric motor model is equipped with motor leads only. The explosion proof motor requires single phase 115/230 voltage. The 5:1 ratio gearbox delivers 350 RPM. The 32" long mixing shaft attaches to the motor coupler and one 6" impeller with set screws. The adjustable clamp allows for vertical positioning of the mixer and tightens to container or stand with hand knob. All wetted parts are stainless steel for chemical resistance. This electric model features a Marathon motor.
Motor
| Horsepower | 1/4 |
| Motor Enclosure | Explosion Proof |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Marathon Model or Equivalent | G852 |
| IPTS Model | RPQ1-5-56C |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Phase | Single |
| Voltage | 115/208-230 |
| Hertz | 60 |
| FL Amps | 4.8:2.3-2.4 |
| ServiceFactor | 1.00 |
| InsulationClass | B |
| Drive | Gear Reduced |
| Gearbox Ratio | 5:1 |
| Gearbox RPM | 0-350 |
Impeller
| Quantity | 1 |
| Diameter | 6" |
| Style | 3-Blade Square Pitch |
| Bore | 5/8" |
| Rotation | Left Hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 2 |
Mount
| Adjustable | 90° vertical adjustment |
| Construction | Cast Aluminum |
| Features | Hand Knob |
Shaft
| Exposed Dimensions | 5/8" x 32" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
1 Business Days * * If ordered before noon EST will ship same day. Orders in quantity or with other items may extend lead times.
