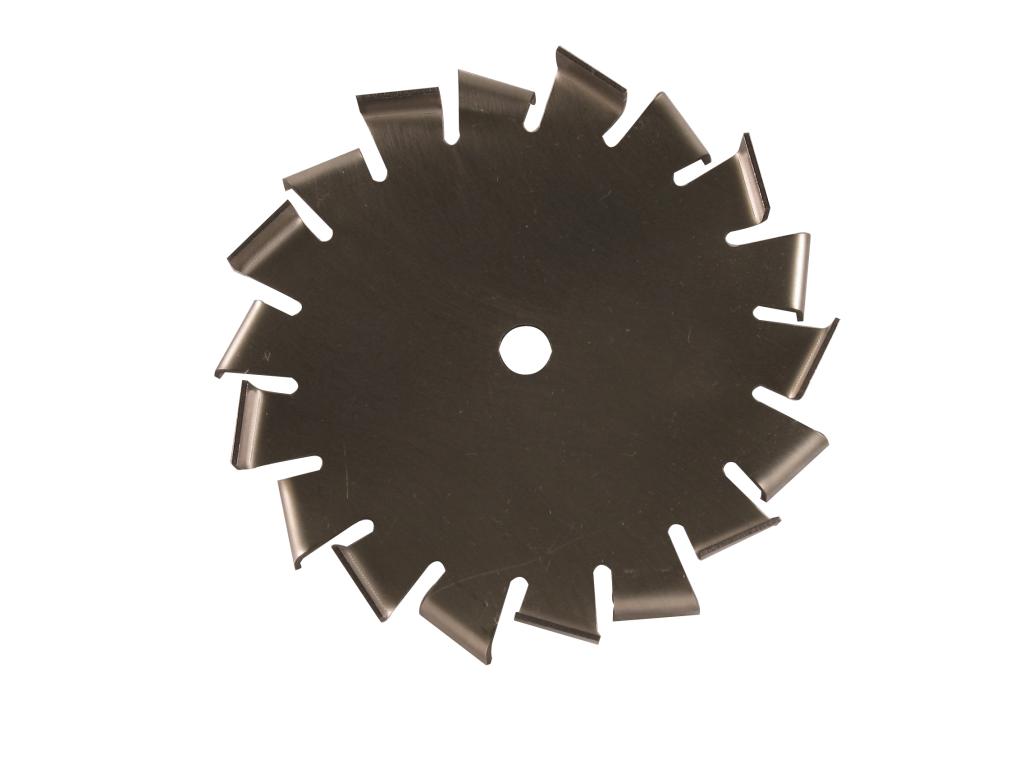

6" Dia. X 1/2" Center Hole Type B 304 SS Dispersion Blade
Model Number: DB6B
Part Number: 21C4270
The INDCO Design B dispersion blade is the performance match to the Hockmeyer "F" design. With an aggressive square tooth profile and slots between teeth providing alternate spacing the B blade is another popular option for a wide range of dispersion applications. The 6" diameter blade is laser cut from 304 stainless steel, has a 1/2" center hole and is die formed. We can provide 316 stainless steel blades by request. For increased blade life or for highly abrasive applications please see our tungsten carbide coated models. All our dispersion blades can be supplied with mounting hole patterns to match your equipment requirements. Optional mounting hubs are also available and include welded or bolted designs. Please see our guide to ordering dispersion blades or contact customer service.
Impeller
| Diameter | 6" |
| Style | Dispersion Blade |
| Center Hole | 1/2" |
| Design | B |
| Material Construction | 304 Stainless Steel |
| Surface Finish | 2B |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 1 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
Model Number: DB6B
The INDCO Design B dispersion blade is the performance match to the Hockmeyer "F" design. With an aggressive square tooth profile and slots between teeth providing alternate spacing the B blade is another popular option for a wide range of dispersion applications. The 6" diameter blade is laser cut from 304 stainless steel, has a 1/2" center hole and is die formed. We can provide 316 stainless steel blades by request. For increased blade life or for highly abrasive applications please see our tungsten carbide coated models. All our dispersion blades can be supplied with mounting hole patterns to match your equipment requirements. Optional mounting hubs are also available and include welded or bolted designs. Please see our guide to ordering dispersion blades or contact customer service.
Impeller
| Diameter | 6" |
| Style | Dispersion Blade |
| Center Hole | 1/2" |
| Design | B |
| Material Construction | 304 Stainless Steel |
| Surface Finish | 2B |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 1 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
1 Business Days * * If ordered before noon EST will ship same day. Orders in quantity or with other items may extend lead times.
