1/2 HP Electric Variable Speed Direct Drive Mixer
Model Number: DL5-V
Part Number: 21A6135

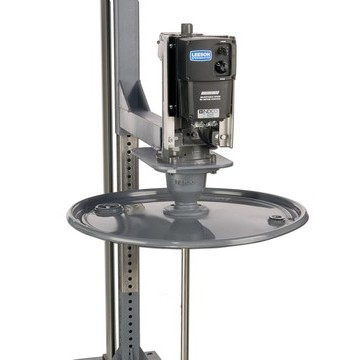

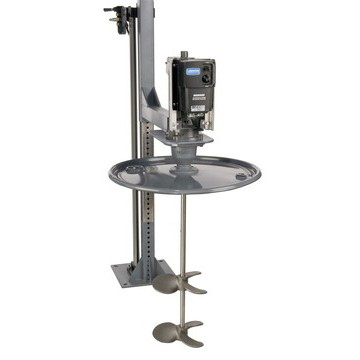

Powerful and portable, INDCO's DL series direct drive drum lid mixer is excellent for use with drums of medium viscosity materials and is shipped complete with a standard 55 gallon drum lid. This 1/2 HP electric motor model is ready to plug into a standard outlet. The totally-enclosed non ventilated motor requires single phase 115/230 voltage. The variable speed control provides 35-1750 RPM. The 30" shaft attaches to the motor coupler and two 4" impellers with set screws. All wetted parts are 316 stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor. **Mixer does not come with stand pictured.
Motor
| Horsepower | 1/2 |
| Motor Enclosure | Totally Enclosed Non Ventilated |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | CDP3330 |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 90 |
| Hertz | 60 |
| InsulationClass | F |
| Drive | Direct |
Impeller
| Quantity | 2 |
| Diameter | 4" |
| Style | 3-Bade Square Pitch |
| Bore | 5/8" |
| Rotation | Left Hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 1 |
Mount
| Construction | Steel |
| Features | Drum Lid |
Shaft
| Exposed Dimensions | 5/8" x 30" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
Model Number: DL5-V
Powerful and portable, INDCO's DL series direct drive drum lid mixer is excellent for use with drums of medium viscosity materials and is shipped complete with a standard 55 gallon drum lid. This 1/2 HP electric motor model is ready to plug into a standard outlet. The totally-enclosed non ventilated motor requires single phase 115/230 voltage. The variable speed control provides 35-1750 RPM. The 30" shaft attaches to the motor coupler and two 4" impellers with set screws. All wetted parts are 316 stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor. **Mixer does not come with stand pictured.
Motor
| Horsepower | 1/2 |
| Motor Enclosure | Totally Enclosed Non Ventilated |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | CDP3330 |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 90 |
| Hertz | 60 |
| InsulationClass | F |
| Drive | Direct |
Impeller
| Quantity | 2 |
| Diameter | 4" |
| Style | 3-Bade Square Pitch |
| Bore | 5/8" |
| Rotation | Left Hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 1 |
Mount
| Construction | Steel |
| Features | Drum Lid |
Shaft
| Exposed Dimensions | 5/8" x 30" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
