1 HP Electric Gear Drive Drum Lid Mixer
Model Number: DLG-1E
Part Number: 21A6140

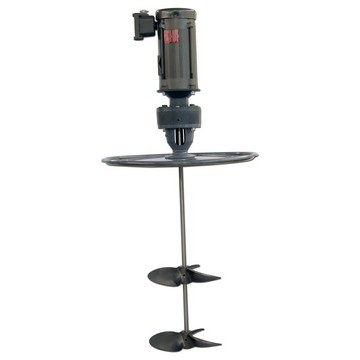

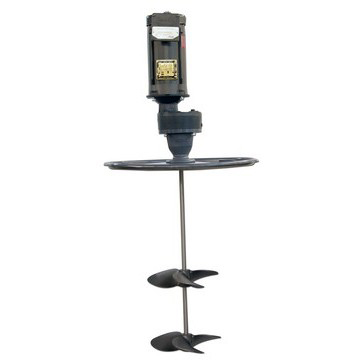

INDCO's rugged DLG series drum lid mixer is excellent for use with heavy bodied coatings, epoxies, mud, plaster and slurries. The 1 HP electric motor model is equipped with motor leads only. This explosion proof motor requires single phase 115/230 voltage. The 5:1 ratio gearbox delivers 350 RPM. The 30" shaft attaches to the motor coupler and two 12" impellers with set screws. This unit includes a standard 55 gallon drum lid. All wetted parts are 316 stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
Motor
| Horsepower | 1 |
| Motor Enclosure | Explosion Proof |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | VL5023A |
| IPTS Model | RPQ1-5-56C |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Phase | Single |
| Voltage | 115/230 |
| Hertz | 60 |
| FL Amps | 13:6.5 |
| ServiceFactor | 1.00 |
| InsulationClass | B |
| Drive | Gear Reduced |
| Gearbox Ratio | 5:1 |
| Gearbox RPM | 350 |
Impeller
| Quantity | 2 |
| Diameter | 12" |
| Style | 3-Blade Square Pitch |
| Bore | 3/4" |
| Rotation | Left Hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 2 |
Mount
| Construction | Steel |
| Features | Drum Lid |
Shaft
| Exposed Dimensions | 3/4" x 30" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
Model Number: DLG-1E
INDCO's rugged DLG series drum lid mixer is excellent for use with heavy bodied coatings, epoxies, mud, plaster and slurries. The 1 HP electric motor model is equipped with motor leads only. This explosion proof motor requires single phase 115/230 voltage. The 5:1 ratio gearbox delivers 350 RPM. The 30" shaft attaches to the motor coupler and two 12" impellers with set screws. This unit includes a standard 55 gallon drum lid. All wetted parts are 316 stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
Motor
| Horsepower | 1 |
| Motor Enclosure | Explosion Proof |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | VL5023A |
| IPTS Model | RPQ1-5-56C |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Phase | Single |
| Voltage | 115/230 |
| Hertz | 60 |
| FL Amps | 13:6.5 |
| ServiceFactor | 1.00 |
| InsulationClass | B |
| Drive | Gear Reduced |
| Gearbox Ratio | 5:1 |
| Gearbox RPM | 350 |
Impeller
| Quantity | 2 |
| Diameter | 12" |
| Style | 3-Blade Square Pitch |
| Bore | 3/4" |
| Rotation | Left Hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 2 |
Mount
| Construction | Steel |
| Features | Drum Lid |
Shaft
| Exposed Dimensions | 3/4" x 30" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
2 Business Days * Orders in quantity or with other items may extend lead times.
