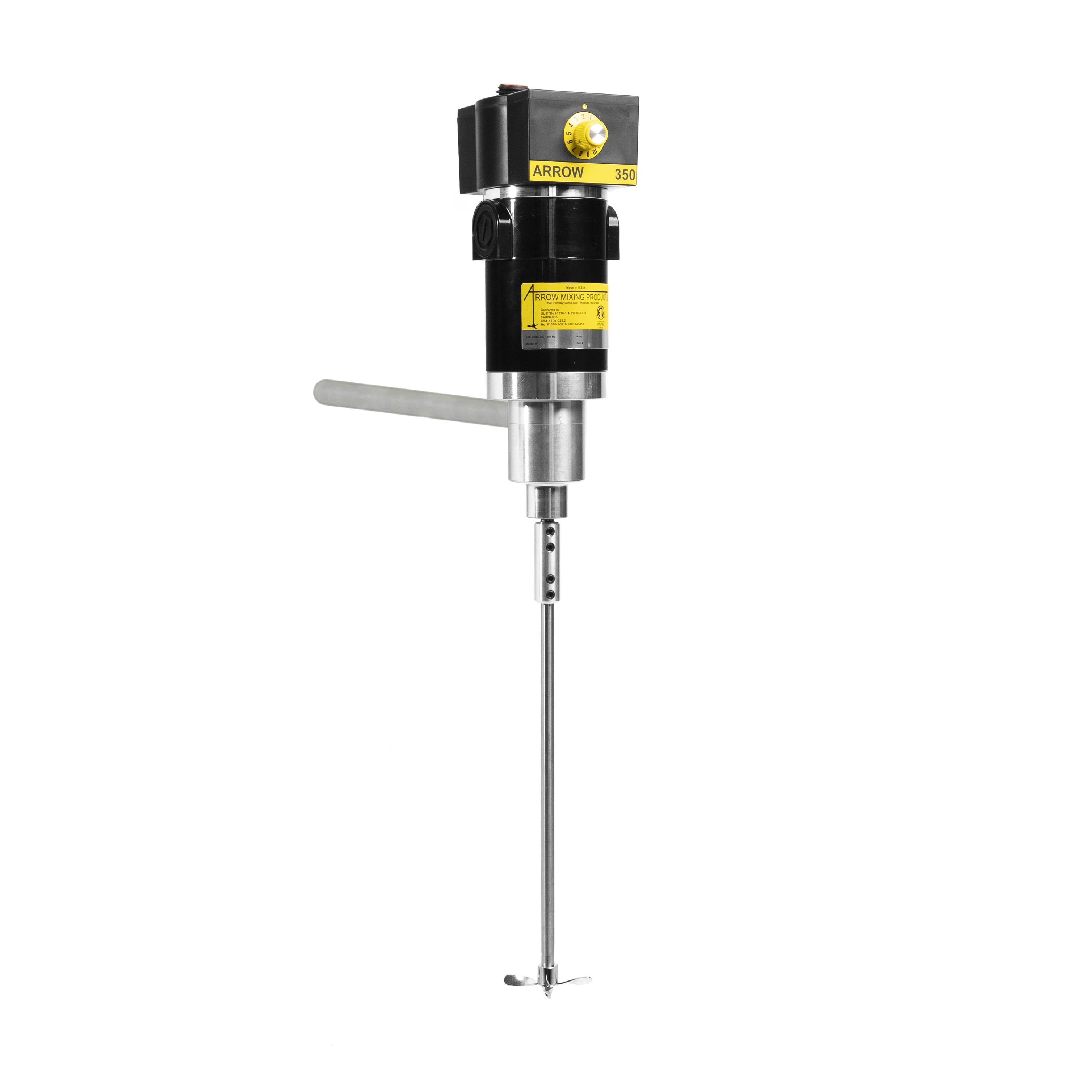

1/15 HP Gear Drive Electric Stirrer
Model Number: ES350
Part Number: 22J2050
The ES350 electric stirrer operates with manual speed control from 0-350 RPM on an integral gear drive motor / controller unit. Rated for heavy duty, this 1/15 HP 115V, 60 Hz unit has a maximum torque load of 14.8 in-lbs. This model comes complete with a 12" shaft, 2-1/2" propeller and a 9/16" x 10" mounting rod and is ideal for agitating light liquids in batch sizes up to 50 liters. Stands or "C" clamps and mounting rod support clamps are available in our product line to assist with different mounting options for this stirrer and are sold separately.
Model Number: ES350
The ES350 electric stirrer operates with manual speed control from 0-350 RPM on an integral gear drive motor / controller unit. Rated for heavy duty, this 1/15 HP 115V, 60 Hz unit has a maximum torque load of 14.8 in-lbs. This model comes complete with a 12" shaft, 2-1/2" propeller and a 9/16" x 10" mounting rod and is ideal for agitating light liquids in batch sizes up to 50 liters. Stands or "C" clamps and mounting rod support clamps are available in our product line to assist with different mounting options for this stirrer and are sold separately.
Motor
| Horsepower | 1/15 |
| Motor Type | Electric |
| Phase | Single |
| Voltage | 115/230 |
| Hertz | 60/50 |
| Drive | Gear Reduced |
| Gearbox Ratio | 7:1 |
Shaft
| Exposed Dimensions | 3/8" x 12" |
| Construction | Stainless Steel |
General
| Warranty | Manufacturer's Warranty |
| Weight | 10 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
7 Business Days * Orders in quantity or with other items may extend lead times.
