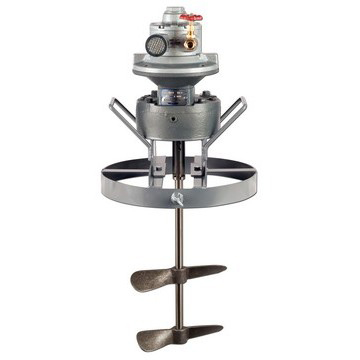

3/4 HP Air 5 Gallon Heavy Duty Mixer
Model Number: FGM-5A
Part Number: 21A6312
Our 5-gallon heavy-duty mixer mounts directly to pails up to 12-1/4" wide with its ring mount design and two handles. The high-torque 5:1 gear reducer vigorously agitates heavy viscosity materials. The quick-change coupler and shaft design features a shaft pin that locks in place during rotation. The two 9" two-blade 319 aluminum propellers attach to the 15" long shaft with set screws.
The FGM-5A model features a 3/4 HP air motor that provides maximum power when supplied with 100 PSI @ 30 CFM. See our air motor performance guide for operation at lower air flow. The air control valve adjust speeds between 0-600 RPM. This model features a Gast air motor which is known for its rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.
Motor
| Horsepower | 3/4 |
| MotorRPM | 300-3000 |
| Motor Type | Air |
| Gast Model | 2AM-NRV-90 |
| IPTS Model | RPQ1-5-56C |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Reversible |
| Air Requirements | 100 PSI @ 30 CFM |
| Air Inlet Size | 1/4" |
| Drive | Gear Reduced |
| Gearbox Ratio | 5:1 |
| Gearbox RPM | 0-600 |
Impeller
| Quantity | 2 |
| Diameter | 9" |
| Style | 2-Blade |
| Bore | 5/8" |
| Rotation | Left Hand |
| Material Construction | Aluminum |
| Blade Construction | Cast |
| Set Screw | 2 |
Mount
| Construction | Steel |
| Features | Ring Mount for pails up to 12-1/4" Wide |
Shaft
| Exposed Dimensions | 5/8" x 15" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
