1/2 HP Electric 5 Gallon Heavy Duty Mixer Includes Stainless Steel Pail Cover
Model Number: FGM-5TS
Part Number: 21A6318

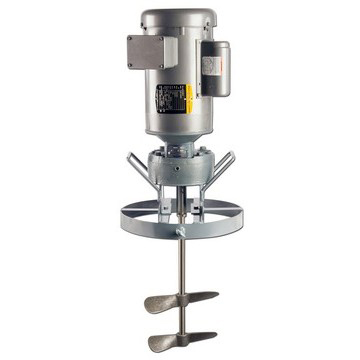

Our 5-gallon heavy-duty mixer mounts directly to pails up to 12-1/4" wide with its ring mount design, stainless steel lid and two handles. The high-torque 5:1 gear reducer vigorously agitates heavy viscosity materials. The quick-change coupler and shaft design features a shaft pin that locks in place during rotation. The two 9" two-blade 319 aluminum propellers attach to the 15" long shaft with set screws.
The FGM-5TS model features a 1/2 HP totally-enclosed fan cooled motor that is ready to plug into a standard outlet. This model operates at a fixed speed of 350 RPM. This electric model features an ABB or an equivalent brand motor.
Motor
| Horsepower | 1/2 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | VL3504 |
| IPTS Model | RPQ1-5-56C |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 115/230 |
| Hertz | 60 |
| FL Amps | 7.4:3.7 |
| ServiceFactor | 1.00 |
| InsulationClass | B |
| Drive | Gear Reduced |
| Gearbox Ratio | 5:1 |
| Gearbox RPM | 350 |
Impeller
| Quantity | 2 |
| Diameter | 9" |
| Style | 2-Blade |
| Bore | 5/8" |
| Rotation | Left Hand |
| Material Construction | Aluminum |
| Blade Construction | Cast |
| Set Screw | 2 |
Mount
| Construction | Stainless Steel |
| Features | Stainless Steel Pail Lid |
TankLinerSpec
| Diameter | 9" |
Shaft
| Exposed Dimensions | 5/8" x 15" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
Model Number: FGM-5TS
Our 5-gallon heavy-duty mixer mounts directly to pails up to 12-1/4" wide with its ring mount design, stainless steel lid and two handles. The high-torque 5:1 gear reducer vigorously agitates heavy viscosity materials. The quick-change coupler and shaft design features a shaft pin that locks in place during rotation. The two 9" two-blade 319 aluminum propellers attach to the 15" long shaft with set screws.
The FGM-5TS model features a 1/2 HP totally-enclosed fan cooled motor that is ready to plug into a standard outlet. This model operates at a fixed speed of 350 RPM. This electric model features an ABB or an equivalent brand motor.
Motor
| Horsepower | 1/2 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | VL3504 |
| IPTS Model | RPQ1-5-56C |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 115/230 |
| Hertz | 60 |
| FL Amps | 7.4:3.7 |
| ServiceFactor | 1.00 |
| InsulationClass | B |
| Drive | Gear Reduced |
| Gearbox Ratio | 5:1 |
| Gearbox RPM | 350 |
Impeller
| Quantity | 2 |
| Diameter | 9" |
| Style | 2-Blade |
| Bore | 5/8" |
| Rotation | Left Hand |
| Material Construction | Aluminum |
| Blade Construction | Cast |
| Set Screw | 2 |
Mount
| Construction | Stainless Steel |
| Features | Stainless Steel Pail Lid |
TankLinerSpec
| Diameter | 9" |
Shaft
| Exposed Dimensions | 5/8" x 15" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
2 Business Days * Orders in quantity or with other items may extend lead times.
