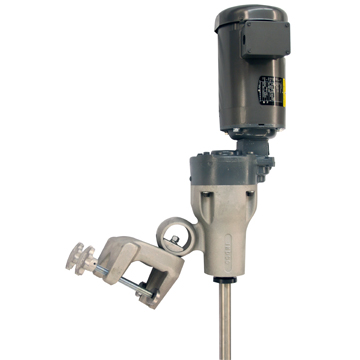

2 HP Electric Explosion Proof Gear Drive Heavy Duty Clamp Mount Mixer
Model Number: GH-200E
Part Number: 21A4044
Our heavy duty clamp mount mixers are our most robust design for mixing in open top containers or with slotted lids. They feature a substantial cast aluminum clamp assembly and nosecone with a pressed-in bearing for maximum shaft support. The mass of the clamp and nosecone combined with larger shaft diameters minimize vibration during operation. The clamp mount has 90° vertical and 360° horizontal adjustments for versatile mixer positioning. The GH series produces high torque necessary for handling large batches of low viscosity materials or small batches of heavy materials.
The electric 2 HP gear drive model with its 5:1 ratio gear reducer runs at 350 RPM. This explosion proof motor is equipped with motor leads only and requires three phase 230/460 voltage. The 70" long shaft attaches to the motor coupler and one 17" hydrofoil impeller with set screws. All wetted parts are 316 stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
Motor
| Horsepower | 2 |
| Motor Enclosure | Explosion Proof |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | VM7037 |
| IPTS Model | RPQ25:1-56C |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Phase | Three |
| Voltage | 230/460 |
| Hertz | 60 |
| FL Amps | 6/3 |
| ServiceFactor | 1.00 |
| InsulationClass | B |
| Drive | Gear Reduced |
| Gearbox Ratio | 5:1 |
| Gearbox RPM | 350 |
Impeller
| Quantity | 1 |
| Diameter | 17" |
| Style | Hydrofoil |
| Bore | 1-1/4" |
| Rotation | Left Hand |
| Material Construction | 316 Stainless Steel |
| Blade Construction | Welded |
| Set Screw | 2 |
Mount
| Adjustable | 90° vertical and 360° horizontal adjustment |
| Construction | Cast Aluminum |
| Features | Hand Knob |
Shaft
| Exposed Dimensions | 1-1/4" x 70" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | LTL Truck |
| Freight Class | 70 |
| FOB | New Albany, IN |
Model Number: GH-200E
Our heavy duty clamp mount mixers are our most robust design for mixing in open top containers or with slotted lids. They feature a substantial cast aluminum clamp assembly and nosecone with a pressed-in bearing for maximum shaft support. The mass of the clamp and nosecone combined with larger shaft diameters minimize vibration during operation. The clamp mount has 90° vertical and 360° horizontal adjustments for versatile mixer positioning. The GH series produces high torque necessary for handling large batches of low viscosity materials or small batches of heavy materials.
The electric 2 HP gear drive model with its 5:1 ratio gear reducer runs at 350 RPM. This explosion proof motor is equipped with motor leads only and requires three phase 230/460 voltage. The 70" long shaft attaches to the motor coupler and one 17" hydrofoil impeller with set screws. All wetted parts are 316 stainless steel for chemical resistance. This electric model features an ABB or an equivalent brand motor.
Motor
| Horsepower | 2 |
| Motor Enclosure | Explosion Proof |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | VM7037 |
| IPTS Model | RPQ25:1-56C |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Phase | Three |
| Voltage | 230/460 |
| Hertz | 60 |
| FL Amps | 6/3 |
| ServiceFactor | 1.00 |
| InsulationClass | B |
| Drive | Gear Reduced |
| Gearbox Ratio | 5:1 |
| Gearbox RPM | 350 |
Impeller
| Quantity | 1 |
| Diameter | 17" |
| Style | Hydrofoil |
| Bore | 1-1/4" |
| Rotation | Left Hand |
| Material Construction | 316 Stainless Steel |
| Blade Construction | Welded |
| Set Screw | 2 |
Mount
| Adjustable | 90° vertical and 360° horizontal adjustment |
| Construction | Cast Aluminum |
| Features | Hand Knob |
Shaft
| Exposed Dimensions | 1-1/4" x 70" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | LTL Truck |
| Freight Class | 70 |
| FOB | New Albany, IN |
1 Business Days * * If ordered before noon EST will ship same day. Orders in quantity or with other items may extend lead times.
