1/2 HP Explosion Proof Electric Benchtop Disperser
Model Number: HS-105E-A1
Part Number: 21D2066

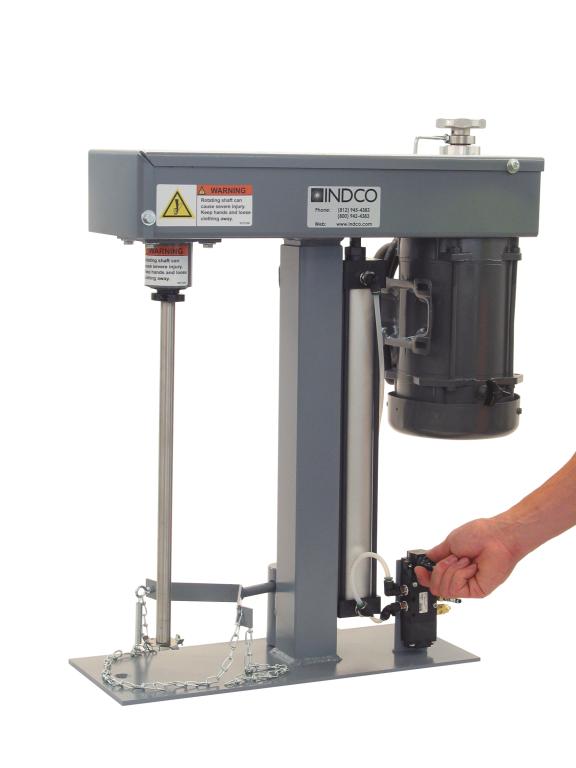

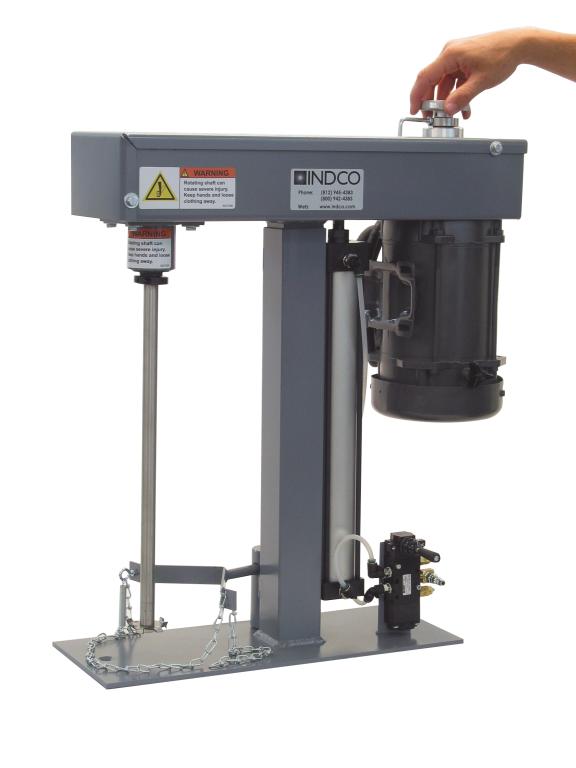

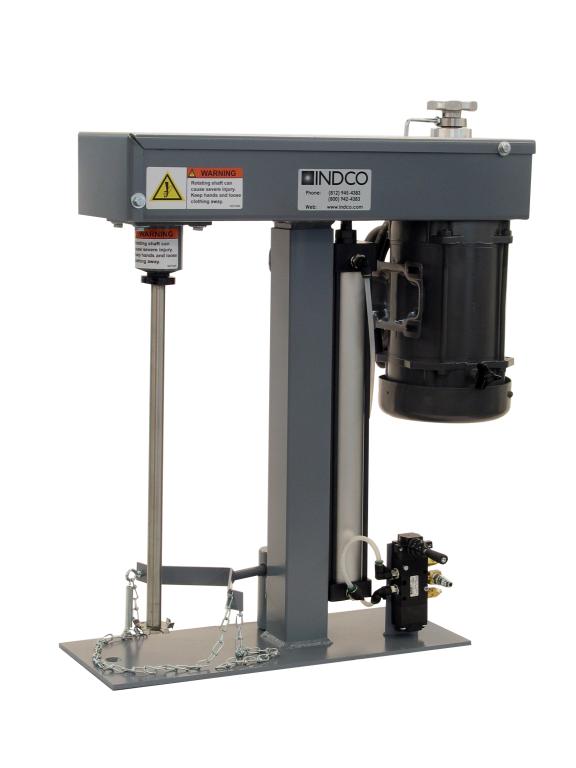

INDCO's 1/2 HP electric bench top disperser processes batches up to one gallon. Adjust the hand knob on top of the unit to speeds between 900-3400 RPM for dispersing. Use either a 3" 3-blade square pitch propeller with set screws or a 2" design A dispersion blade with bottom threaded shaft bolt on the 17" long mixing shaft. Raise or lower the unit 15" with the pneumatic cylinder and toggle valve. The cylinder requires 5 CFM at 50 PSI. Securely hold the pail in place with the adjustable chain restraint. The explosion proof motor requires 115 volt, 60 hz. This unit comes with motor leads only. All wetted parts are constructed from 300 series stainless steel.
Motor
| Horsepower | 1/2 - 1/3 |
| Motor Enclosure | Explosion Proof |
| Motor Type | Electric |
| Baldor Model or Equivalent | VL5004A |
| Motor Frame | 56 |
| Rotation Top | Wired Clockwise |
| Phase | Single |
Impeller
| Quantity | 0 |
| Diameter | "3" propeller |
Mount
| Adjustable | Raises 15" |
| Construction | Steel |
| Features | Benchtop Base with Air Cylinder |
Shaft
| Exposed Dimensions | 3/4" x 17" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 134.000000000 |
| Shipping Carrier | LTL Truck |
| Freight Class | 70 |
| FOB | New Albany, IN |
Model Number: HS-105E-A1
INDCO's 1/2 HP electric bench top disperser processes batches up to one gallon. Adjust the hand knob on top of the unit to speeds between 900-3400 RPM for dispersing. Use either a 3" 3-blade square pitch propeller with set screws or a 2" design A dispersion blade with bottom threaded shaft bolt on the 17" long mixing shaft. Raise or lower the unit 15" with the pneumatic cylinder and toggle valve. The cylinder requires 5 CFM at 50 PSI. Securely hold the pail in place with the adjustable chain restraint. The explosion proof motor requires 115 volt, 60 hz. This unit comes with motor leads only. All wetted parts are constructed from 300 series stainless steel.
Motor
| Horsepower | 1/2 - 1/3 |
| Motor Enclosure | Explosion Proof |
| Motor Type | Electric |
| Baldor Model or Equivalent | VL5004A |
| Motor Frame | 56 |
| Rotation Top | Wired Clockwise |
| Phase | Single |
Impeller
| Quantity | 0 |
| Diameter | "3" propeller |
Mount
| Adjustable | Raises 15" |
| Construction | Steel |
| Features | Benchtop Base with Air Cylinder |
Shaft
| Exposed Dimensions | 3/4" x 17" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 134.000000000 |
| Shipping Carrier | LTL Truck |
| Freight Class | 70 |
| FOB | New Albany, IN |
8 Business Days * Orders in quantity or with other items may extend lead times.
