1-1/2 HP TEFC Electric Benchtop Disperser
Model Number: HS-115T-A1
Part Number: 21D2071
INDCO's 1-1/2 HP electric bench top unit reliably disperses batches up to five gallons. Raise or lower the pneumatic cylinder 15" with the easy to use toggle valve. The lift cylinder requires 5 CFM at 50 PSI. The hand knob on top of the unit adjusts the speed from 1000-4100 RPM. The 1" x 15" shaft is drilled and tapped on the end for bolting on the included 4" diameter design A dispersion blade. The container holder secures up to 5-gallon pails with the adjustable chain restraint. The totally-enclosed fan cooled motor requires 115/230 volt, single phase 60 Hz power. This unit is ready to plug into a standard outlet and features an ABB or an equivalent brand motor.
All wetted parts are constructed from 300 series stainless steel.

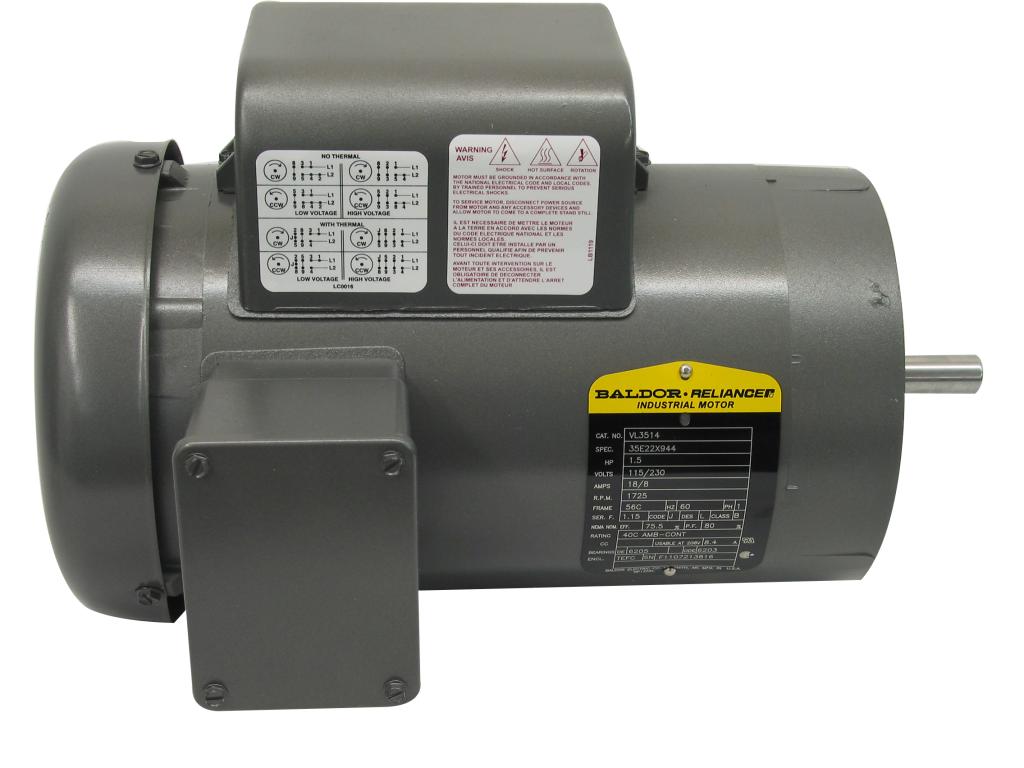

Motor
| Horsepower | 1-1/2 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | VL3514 |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 115/230 |
| Hertz | 60 |
| FL Amps | 18/8 |
| ServiceFactor | 1.00 |
| InsulationClass | B |
Impeller
| Quantity | 1 |
| Diameter | 4" |
| Style | Dispersion Blade |
| Center Hole | 1/2" |
| Design | A |
| Material Construction | 304 Stainless Steel |
| Blade Construction | Laser Cut |
Mount
| Adjustable | Raises 15" |
| Construction | Steel |
| Features | Benchtop Base with Air Cylinder |
Shaft
| Exposed Dimensions | 1" x 15" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 219.000000000 |
| Shipping Carrier | LTL Truck |
| Freight Class | 70 |
| FOB | New Albany, IN |
Model Number: HS-115T-A1
INDCO's 1-1/2 HP electric bench top unit reliably disperses batches up to five gallons. Raise or lower the pneumatic cylinder 15" with the easy to use toggle valve. The lift cylinder requires 5 CFM at 50 PSI. The hand knob on top of the unit adjusts the speed from 1000-4100 RPM. The 1" x 15" shaft is drilled and tapped on the end for bolting on the included 4" diameter design A dispersion blade. The container holder secures up to 5-gallon pails with the adjustable chain restraint. The totally-enclosed fan cooled motor requires 115/230 volt, single phase 60 Hz power. This unit is ready to plug into a standard outlet and features an ABB or an equivalent brand motor.
All wetted parts are constructed from 300 series stainless steel.
Motor
| Horsepower | 1-1/2 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | VL3514 |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 115/230 |
| Hertz | 60 |
| FL Amps | 18/8 |
| ServiceFactor | 1.00 |
| InsulationClass | B |
Impeller
| Quantity | 1 |
| Diameter | 4" |
| Style | Dispersion Blade |
| Center Hole | 1/2" |
| Design | A |
| Material Construction | 304 Stainless Steel |
| Blade Construction | Laser Cut |
Mount
| Adjustable | Raises 15" |
| Construction | Steel |
| Features | Benchtop Base with Air Cylinder |
Shaft
| Exposed Dimensions | 1" x 15" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 219.000000000 |
| Shipping Carrier | LTL Truck |
| Freight Class | 70 |
| FOB | New Albany, IN |
8 Business Days * Orders in quantity or with other items may extend lead times.
