1/2 HP Air Disperser with Tachometer and Benchtop Base
Model Number: HSD02
Part Number: 21D2052

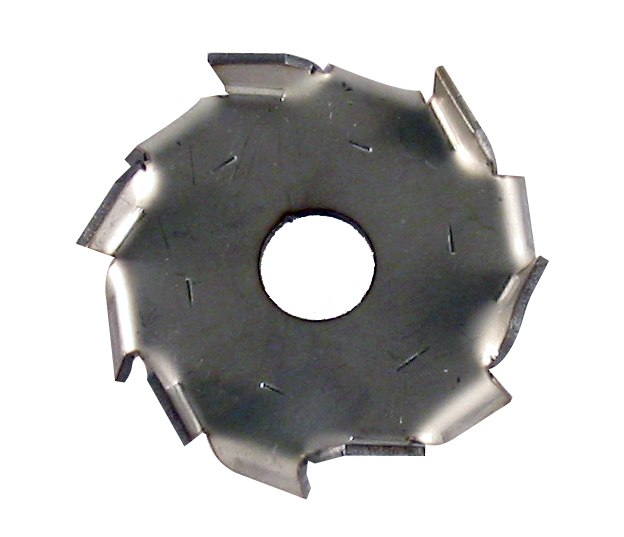

INDCO's HSD02 air bench top disperser with digital tachometer reliably processes batches up to one gallon. Manually raise or lower the unit 12" and securely lock in place with a clevis pin. The 1/2 HP motor provides maximum agitation when supplied with 100 PSI at 71 CFM. See our air motor performance guides for operation at lower air flow. A 12" straight shaft attaches to a 2-1/2" propeller with a set screw. A 12" turned down and threaded shaft (model TS038) attaches to a 2" design A dispersion blade with adapter plates (model SA300) and nut. All wetted parts are 300 series stainless steel. This model features a Gast air motor known for rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.
Motor
| Horsepower | 1/2 |
| MotorRPM | 200-6000 |
| Motor Type | Air |
| Gast Model | 1UP-NCC-1A |
| Motor Frame | Hub |
| Motor Exterior | Painted |
| Rotation Top | Reversible |
| Air Requirements | 100 PSI @ 71 CFM |
| Air Inlet Size | 1/4" |
Impeller
| Diameter | "2"" Blade |
Mount
| Adjustable | Manual Lift Raises 12" |
| Construction | Steel |
| Features | Benchtop Base |
TankLinerSpec
| Diameter | "2""-Blade |
Shaft
| Exposed Dimensions | 3/8" x 12" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
Model Number: HSD02
INDCO's HSD02 air bench top disperser with digital tachometer reliably processes batches up to one gallon. Manually raise or lower the unit 12" and securely lock in place with a clevis pin. The 1/2 HP motor provides maximum agitation when supplied with 100 PSI at 71 CFM. See our air motor performance guides for operation at lower air flow. A 12" straight shaft attaches to a 2-1/2" propeller with a set screw. A 12" turned down and threaded shaft (model TS038) attaches to a 2" design A dispersion blade with adapter plates (model SA300) and nut. All wetted parts are 300 series stainless steel. This model features a Gast air motor known for rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.
Motor
| Horsepower | 1/2 |
| MotorRPM | 200-6000 |
| Motor Type | Air |
| Gast Model | 1UP-NCC-1A |
| Motor Frame | Hub |
| Motor Exterior | Painted |
| Rotation Top | Reversible |
| Air Requirements | 100 PSI @ 71 CFM |
| Air Inlet Size | 1/4" |
Impeller
| Diameter | "2"" Blade |
Mount
| Adjustable | Manual Lift Raises 12" |
| Construction | Steel |
| Features | Benchtop Base |
TankLinerSpec
| Diameter | "2""-Blade |
Shaft
| Exposed Dimensions | 3/8" x 12" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
3 Business Days * Orders in quantity or with other items may extend lead times.
