1/2 HP Air Disperser with Support Stand
Model Number: HSD06
Part Number: 21D2054

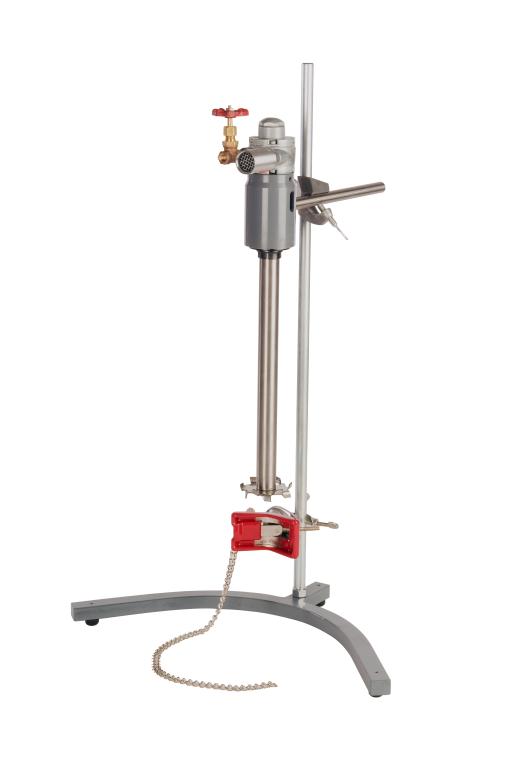

INDCO's model HSD06 pneumatic bench top disperser reliably handles batches up to one gallon. Manually raise or lower the unit using the 30" tall mixer stand and securely lock in place with a support clamp. The 1/2 HP motor provides maximum agitation when supplied with 100 PSI at 71 CFM. See our air motor performance guide for operation at lower air flow. The 1" x 12" shaft is drilled and tapped on the end for bolting on a 2" diameter design A dispersion blade. The heavy-duty ball bearing provides added stability and minimizes shaft vibration. Unit includes a container holder with adjustable chain restraint. All wetted parts are 300 series stainless steel. This model features a Gast air motor known for rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.
Motor
| Horsepower | 1/2 |
| MotorRPM | 200-6000 |
| Motor Type | Air |
| Gast Model | 1UP-NCC-1A |
| Motor Frame | Hub |
| Motor Exterior | Painted |
| Rotation Top | Reversible |
| Air Requirements | 100 PSI @ 71 CFM |
| Air Inlet Size | 1/4" |
Impeller
| Quantity | 1 |
| Diameter | 2" |
| Style | Dispersion Blade |
| Center Hole | 1/2" |
| Design | A |
| Material Construction | 304 Stainless Steel |
| Blade Construction | Laser Cut |
Mount
| Adjustable | Accepts containers up to 15" tall |
| Construction | Steel |
| Features | Support Stand 30" Tall |
Shaft
| Exposed Dimensions | 3/8" x 12" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
Model Number: HSD06
INDCO's model HSD06 pneumatic bench top disperser reliably handles batches up to one gallon. Manually raise or lower the unit using the 30" tall mixer stand and securely lock in place with a support clamp. The 1/2 HP motor provides maximum agitation when supplied with 100 PSI at 71 CFM. See our air motor performance guide for operation at lower air flow. The 1" x 12" shaft is drilled and tapped on the end for bolting on a 2" diameter design A dispersion blade. The heavy-duty ball bearing provides added stability and minimizes shaft vibration. Unit includes a container holder with adjustable chain restraint. All wetted parts are 300 series stainless steel. This model features a Gast air motor known for rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.
Motor
| Horsepower | 1/2 |
| MotorRPM | 200-6000 |
| Motor Type | Air |
| Gast Model | 1UP-NCC-1A |
| Motor Frame | Hub |
| Motor Exterior | Painted |
| Rotation Top | Reversible |
| Air Requirements | 100 PSI @ 71 CFM |
| Air Inlet Size | 1/4" |
Impeller
| Quantity | 1 |
| Diameter | 2" |
| Style | Dispersion Blade |
| Center Hole | 1/2" |
| Design | A |
| Material Construction | 304 Stainless Steel |
| Blade Construction | Laser Cut |
Mount
| Adjustable | Accepts containers up to 15" tall |
| Construction | Steel |
| Features | Support Stand 30" Tall |
Shaft
| Exposed Dimensions | 3/8" x 12" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
