1/2 HP Variable Speed Electric Heavy Duty Pail Scraper Style Mixer
Model Number: M-2000V
Part Number: 21N5004

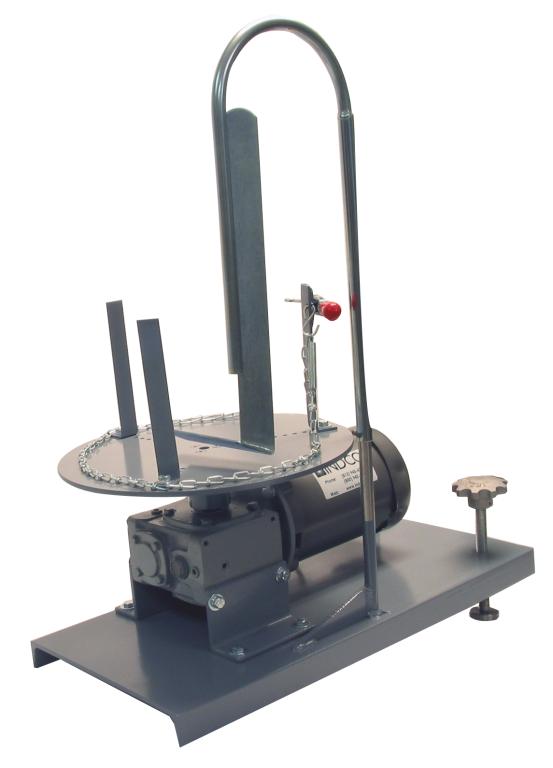

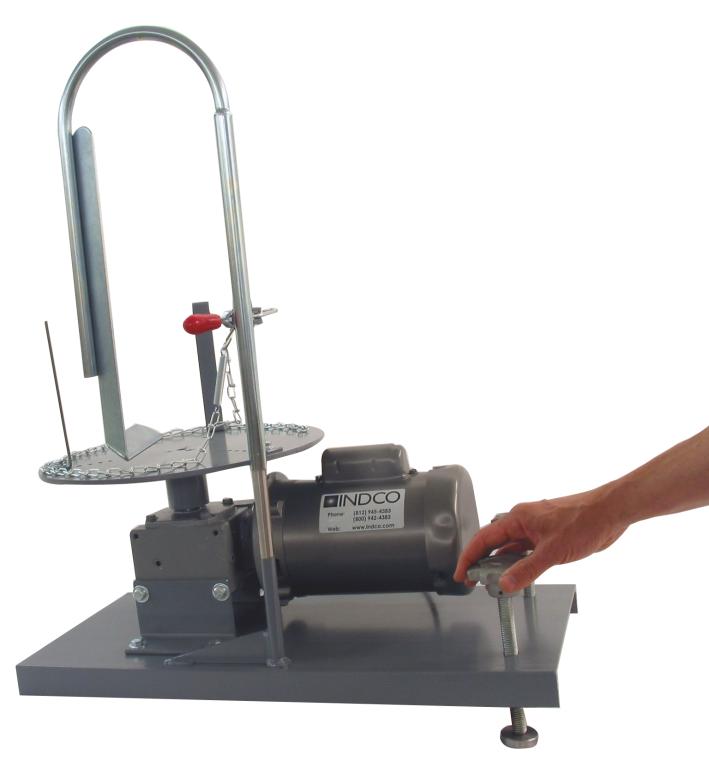

The turntable style tabletop mixer rotates a 1- to 5- gallon pail while mixing with a stationary paddle that scrapes the side and bottom providing a radial and axial action. The adjustable legs offer mixing angles from 1-15 degrees. The paddle is zinc-plated carbon steel. The 1/2 HP totally-enclosed non ventilated electric motor requires 115 volt, 1 phase 60 Hz. This unit is ready to plug into a standard outlet. The variable speed control operates the unit from 0-60 RPM. This electric model features an ABB or an equivalent brand motor. The unit is shipped fully assembled. (Pails are not included.) This item must ship via an LTL carrier.
Motor
| Horsepower | 1/2 |
| Motor Enclosure | Totally Enclosed Non Ventilated |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | CDP3330 |
| Boston Model or Equivalent | IC45-30:1-2L-56C |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 115 |
| Hertz | 60 |
| InsulationClass | F |
| Drive | Gear Reduced |
| Gearbox Ratio | 30:1 |
| Gearbox Design | Right Angle |
Impeller
| Quantity | 1 |
| Style | Scraper |
| Material Construction | Zinc Plated Carbon Steel |
| Blade Construction | Welded |
Mount
| Adjustable | 0 - 15° Angle |
| Construction | Steel |
| Features | 2 Hand Knobs Adjust Base |
Shaft
| Construction | Zinc Plated Carbon Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 135.000000000 |
| Shipping Carrier | LTL Truck |
| Freight Class | 70 |
| FOB | New Albany, IN |
Model Number: M-2000V
The turntable style tabletop mixer rotates a 1- to 5- gallon pail while mixing with a stationary paddle that scrapes the side and bottom providing a radial and axial action. The adjustable legs offer mixing angles from 1-15 degrees. The paddle is zinc-plated carbon steel. The 1/2 HP totally-enclosed non ventilated electric motor requires 115 volt, 1 phase 60 Hz. This unit is ready to plug into a standard outlet. The variable speed control operates the unit from 0-60 RPM. This electric model features an ABB or an equivalent brand motor. The unit is shipped fully assembled. (Pails are not included.) This item must ship via an LTL carrier.
Motor
| Horsepower | 1/2 |
| Motor Enclosure | Totally Enclosed Non Ventilated |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | CDP3330 |
| Boston Model or Equivalent | IC45-30:1-2L-56C |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 115 |
| Hertz | 60 |
| InsulationClass | F |
| Drive | Gear Reduced |
| Gearbox Ratio | 30:1 |
| Gearbox Design | Right Angle |
Impeller
| Quantity | 1 |
| Style | Scraper |
| Material Construction | Zinc Plated Carbon Steel |
| Blade Construction | Welded |
Mount
| Adjustable | 0 - 15° Angle |
| Construction | Steel |
| Features | 2 Hand Knobs Adjust Base |
Shaft
| Construction | Zinc Plated Carbon Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 135.000000000 |
| Shipping Carrier | LTL Truck |
| Freight Class | 70 |
| FOB | New Albany, IN |
5 Business Days * Orders in quantity or with other items may extend lead times.
