3/4 HP Air Direct Drive Quic Ring Mount Mixer
Model Number: MAT-Q
Part Number: 21N5019

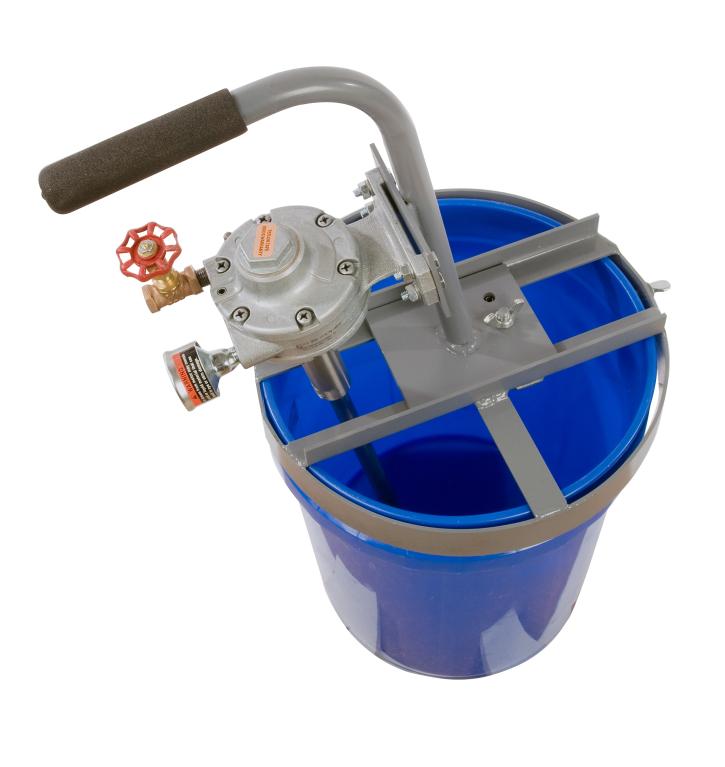

INDCO's Quic Mixers are a portable and lightweight option for mixing 5-gallon pails with an open top or through a 1-1/2" bung utilizing the folding impeller design. The 12-1/4" ID ring mount sits on the pail and provides a low center of gravity for steady, worry free mixing. The adjustable center channel design allows the mixer to slide for positioning and locks in place. The quick-change coupler and shaft design features a shaft pin that locks in place during rotation. The quic mixer is ideal for blending colorants into paint, remixing settled material or adding powders.
The MAT-Q model is equipped with a speed control valve providing 300-3000 RPM output. The 3/4 HP air-powered model provides maximum agitation when supplied with 100 PSI @ 30 CFM. See our air motor performance guide for operation at lower air flow. This unit has a 4-1/2" diameter folding impeller on a 12" long shaft. All wetted parts are 300 series stainless steel for chemical resistance. This model features a Gast air motor known for rugged construction and reliability. Air motors deliver variable speed for maximum process control or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.
Motor
| Horsepower | 3/4 |
| MotorRPM | 300-3000 |
| Motor Type | Air |
| Gast Model | 2AM-FCC-1 |
| Motor Frame | Foot |
| Motor Exterior | Painted |
| Rotation Top | Clockwise |
| Air Requirements | 100 PSI @ 30 CFM |
| Air Inlet Size | 1/4" |
| Drive | Direct |
Impeller
| Quantity | 1 |
| Diameter | 4-1/2" |
| Style | MSF-Q |
| Rotation | Left Hand |
| Material Construction | Stainless Steel |
| Blade Construction | Laser Cut |
| Set Screw | Pin |
Mount
| Adjustable | Mixer Position is Adjustable |
| Construction | Steel |
| Features | 5 Gallon Ring Mount |
TankLinerSpec
| Diameter | 4-1/2" |
Shaft
| Exposed Dimensions | 5/8" x 12" |
| Construction | Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 17 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
Model Number: MAT-Q
INDCO's Quic Mixers are a portable and lightweight option for mixing 5-gallon pails with an open top or through a 1-1/2" bung utilizing the folding impeller design. The 12-1/4" ID ring mount sits on the pail and provides a low center of gravity for steady, worry free mixing. The adjustable center channel design allows the mixer to slide for positioning and locks in place. The quick-change coupler and shaft design features a shaft pin that locks in place during rotation. The quic mixer is ideal for blending colorants into paint, remixing settled material or adding powders.
The MAT-Q model is equipped with a speed control valve providing 300-3000 RPM output. The 3/4 HP air-powered model provides maximum agitation when supplied with 100 PSI @ 30 CFM. See our air motor performance guide for operation at lower air flow. This unit has a 4-1/2" diameter folding impeller on a 12" long shaft. All wetted parts are 300 series stainless steel for chemical resistance. This model features a Gast air motor known for rugged construction and reliability. Air motors deliver variable speed for maximum process control or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.
Motor
| Horsepower | 3/4 |
| MotorRPM | 300-3000 |
| Motor Type | Air |
| Gast Model | 2AM-FCC-1 |
| Motor Frame | Foot |
| Motor Exterior | Painted |
| Rotation Top | Clockwise |
| Air Requirements | 100 PSI @ 30 CFM |
| Air Inlet Size | 1/4" |
| Drive | Direct |
Impeller
| Quantity | 1 |
| Diameter | 4-1/2" |
| Style | MSF-Q |
| Rotation | Left Hand |
| Material Construction | Stainless Steel |
| Blade Construction | Laser Cut |
| Set Screw | Pin |
Mount
| Adjustable | Mixer Position is Adjustable |
| Construction | Steel |
| Features | 5 Gallon Ring Mount |
TankLinerSpec
| Diameter | 4-1/2" |
Shaft
| Exposed Dimensions | 5/8" x 12" |
| Construction | Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 17 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
Documents
- M-M-30125 Quic-Mixer Series
- Specsht_2am
- 2amfcc1
- Service Manual _lubricated_AM_motors
- M-I-20104 Air Motor Manual
