1 HP Electric Heavy Duty Pail Lift Mixer
Model Number: MX-1TA
Part Number: 21N1018

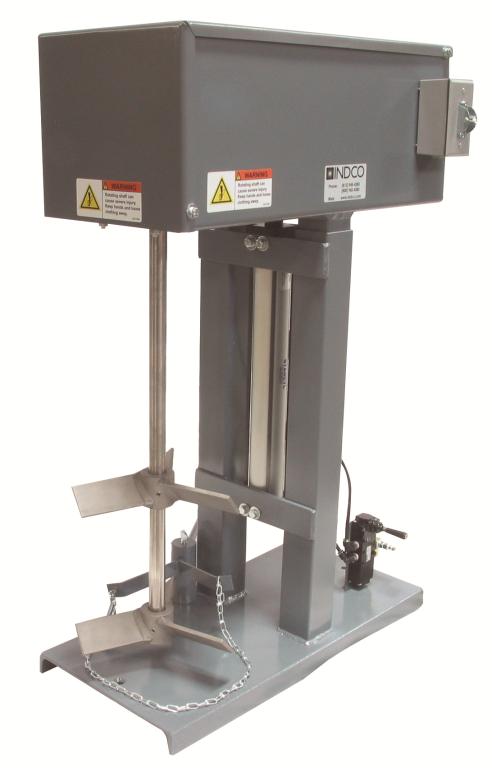

INDCO's heavy duty lift mixers are powerful floor-mounted mixing stations for blending pails up to 14" diameter and 16" tall of high viscosity liquids. The 10:1 gear ratio, 1" diameter 316 stainless steel shaft and two 10" 3-blade axial flow turbine provide excellent agitation of heavy materials. The pneumatic lift cylinder has an operating range of 15" for a total raised overall height of 54" and securely holds up to 5-gallon pails in place with the adjustable chain restraint.

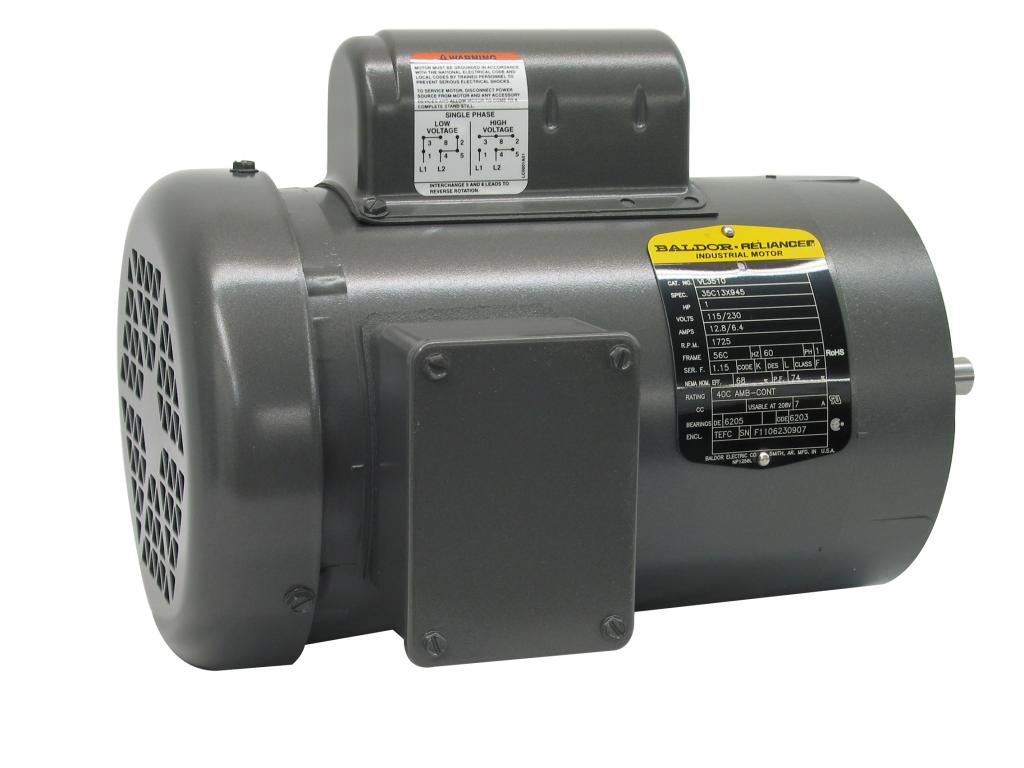

This 1 HP totally-enclosed fan cooled electric model is ready to plug into a standard outlet. The motor requires 115/230 volt, 1 phase 60 Hz input and has a fixed speed of 175 RPM. The impeller attaches to the 25" long shaft with set screws. The left hand impeller design produces downward fluid motion with clockwise rotation as viewed from above. All wetted parts are 316 stainless steel for chemical resistance. This electric model features a Baldor motor known for quality and reliability.
Motor
| Horsepower | 1 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | VL3510 |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 115/230 |
| Hertz | 60 |
| FL Amps | 12.8:6.4 |
| ServiceFactor | 1.00 |
| InsulationClass | F |
| Drive | Gear Reduced |
| Gearbox Ratio | 10:1 |
| Gearbox RPM | 175 |
Impeller
| Quantity | 2 |
| Diameter | 10" |
| Style | Axial |
| Bore | 1" |
| Rotation | Left Hand |
| Material Construction | 316 Stainless Steel |
| Blade Construction | Welded |
| Set Screw | 2 |
Shaft
| Exposed Dimensions | 1" X 25" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 254 |
| Shipping Carrier | LTL Truck |
| FOB | New Albany, IN |
Model Number: MX-1TA
INDCO's heavy duty lift mixers are powerful floor-mounted mixing stations for blending pails up to 14" diameter and 16" tall of high viscosity liquids. The 10:1 gear ratio, 1" diameter 316 stainless steel shaft and two 10" 3-blade axial flow turbine provide excellent agitation of heavy materials. The pneumatic lift cylinder has an operating range of 15" for a total raised overall height of 54" and securely holds up to 5-gallon pails in place with the adjustable chain restraint.
This 1 HP totally-enclosed fan cooled electric model is ready to plug into a standard outlet. The motor requires 115/230 volt, 1 phase 60 Hz input and has a fixed speed of 175 RPM. The impeller attaches to the 25" long shaft with set screws. The left hand impeller design produces downward fluid motion with clockwise rotation as viewed from above. All wetted parts are 316 stainless steel for chemical resistance. This electric model features a Baldor motor known for quality and reliability.
Motor
| Horsepower | 1 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | VL3510 |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 115/230 |
| Hertz | 60 |
| FL Amps | 12.8:6.4 |
| ServiceFactor | 1.00 |
| InsulationClass | F |
| Drive | Gear Reduced |
| Gearbox Ratio | 10:1 |
| Gearbox RPM | 175 |
Impeller
| Quantity | 2 |
| Diameter | 10" |
| Style | Axial |
| Bore | 1" |
| Rotation | Left Hand |
| Material Construction | 316 Stainless Steel |
| Blade Construction | Welded |
| Set Screw | 2 |
Shaft
| Exposed Dimensions | 1" X 25" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 254 |
| Shipping Carrier | LTL Truck |
| FOB | New Albany, IN |
8 Business Days * Orders in quantity or with other items may extend lead times.
