3 HP DC Variable Speed Electric GD Mixer with Air Lift
Model Number: MX3-TV1
Part Number: 21Q1050

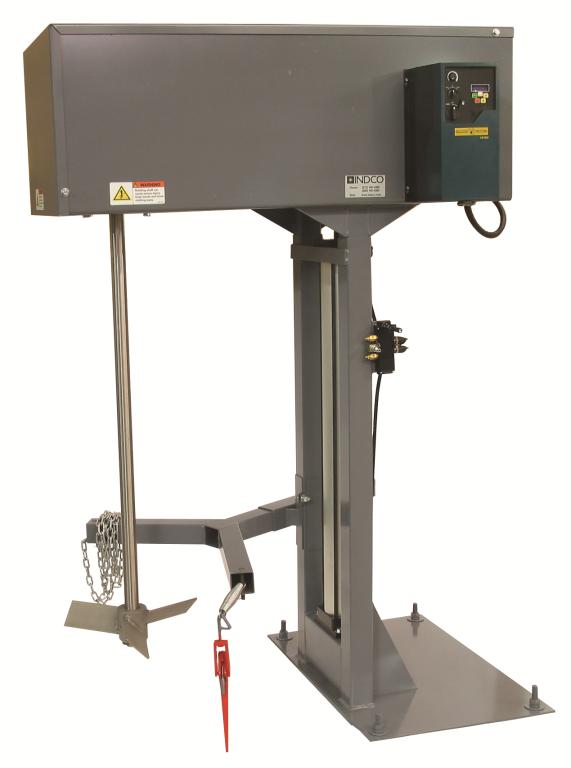

INDCO's heavy duty lift mixers are powerful floor-mounted mixing stations for blending drums of high viscosity liquids. The 10:1 gear ratio, 1 ½" diameter 316 stainless steel shaft and 15" 3-blade axial flow turbine provide excellent agitation of heavy materials. The pneumatic lift cylinder has an operating range of 36" for a total raised height of 104" and securely holds 55-gallon drums in place with the adjustable chain restraint.
This 3 HP totally enclosed fan cooled electric model requires 230 volt, 1 phase 60 Hz input and has 0-175 RPM DC variable speed. The motor is equipped with motor leads only. The impeller is keyed and attaches to the 45" long shaft with set screws. The left hand impeller design produces downward fluid motion with clockwise rotation as viewed from above. All wetted parts are 316 stainless steel for chemical resistance. This electric model features a Baldor motor known for quality and reliability.
Motor
| Horsepower | 1 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | CDP3445 |
| Boston Model or Equivalent | HF726R-10Z-B7-H-P24 |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Wired Clockwise |
| Phase | Single |
| Voltage | 90 |
| InsulationClass | F |
| Drive | Gear Reduced |
| Gearbox Ratio | 10:1 |
| Gearbox RPM | 0-175 |
| Gearbox Design | Right Angle |
Impeller
| Quantity | 1 |
| Diameter | 15" |
| Style | Axial |
| Bore | 1" |
| Rotation | Left Hand |
| Material Construction | 316 Stainless Steel |
| Blade Construction | Welded |
| Set Screw | 2 |
Mount
| Adjustable | Raises 36" |
| Construction | Steel |
| Lift Style | Air Cylinder |
Shaft
| Exposed Dimensions | 1-1/2" x 45" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | LTL Truck |
| Freight Class | 70 |
| FOB | New Albany, IN |
