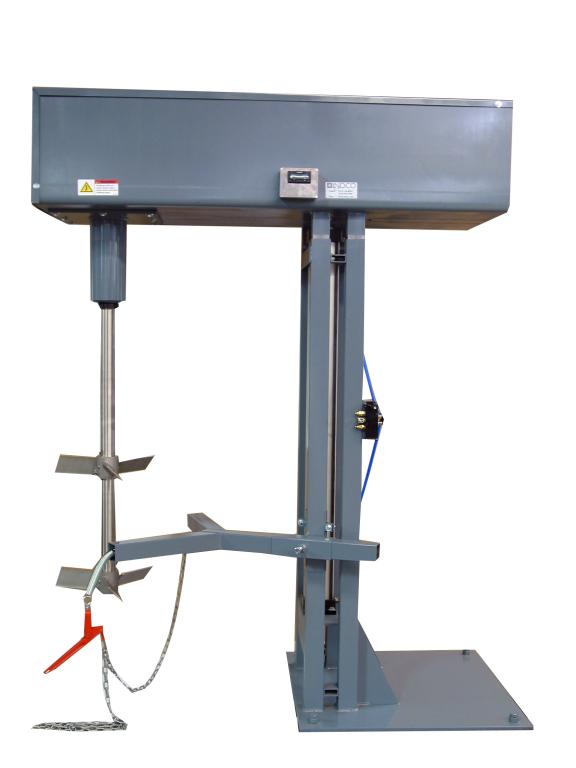

5 HP Mechanical Variable Speed Explosion Proof Electric GD Mixer with Air Lift
Model Number: MX5-EV
Part Number: 21Q1058
INDCO's heavy duty lift mixers are powerful floor-mounted mixing stations for blending drums of high viscosity liquids. The 10:1 gear ratio, 2" diameter 316 stainless steel shaft and two 15" 3-blade axial flow turbines provide excellent agitation of heavy materials. The pneumatic lift cylinder has an operating range of 48" for a total raised height of 118" and securely holds 55-gallon drums in place with the adjustable chain restraint.
This 5 HP explosion proof electric model requires 230/460 volt, 3 phase 60 Hz input. The mechanical variable speed belt provides 30-200 RPM. The motor is equipped with motor leads only. The impeller is keyed and attaches to the 58" long shaft with set screws. The left hand impeller design produces downward fluid motion with clockwise rotation as viewed from above. All wetted parts are 316 stainless steel for chemical resistance. This electric model features a Baldor motor known for quality and reliability.
Motor
| Horsepower | 5 |
| Motor Enclosure | Explosion Proof |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | VM7044T |
| Boston Model or Equivalent | HF738R-10Z-B9-H-P32 |
| Motor Frame | 184TC |
| Motor Exterior | Painted |
| Phase | Three |
| Voltage | 230/460 |
| Hertz | 60 |
| FL Amps | 13.6:6.8 |
| ServiceFactor | 1.00 |
| InsulationClass | B |
| Drive | Gear Reduced |
| Gearbox Ratio | 10:1 |
| Gearbox RPM | 0-175 |
Impeller
| Quantity | 2 |
| Diameter | 15" |
| Style | Axial |
| Bore | 2" |
| Rotation | Left Hand |
| Material Construction | 316 Stainless Steel |
| Blade Construction | Welded |
| Set Screw | 2 |
Mount
| Adjustable | Raises 48" |
| Construction | Steel |
| Lift Style | Air Cylinder |
Shaft
| Exposed Dimensions | 2" x 58" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 1689 |
| Shipping Carrier | LTL Truck |
| FOB | New Albany, IN |
Model Number: MX5-EV
INDCO's heavy duty lift mixers are powerful floor-mounted mixing stations for blending drums of high viscosity liquids. The 10:1 gear ratio, 2" diameter 316 stainless steel shaft and two 15" 3-blade axial flow turbines provide excellent agitation of heavy materials. The pneumatic lift cylinder has an operating range of 48" for a total raised height of 118" and securely holds 55-gallon drums in place with the adjustable chain restraint.
This 5 HP explosion proof electric model requires 230/460 volt, 3 phase 60 Hz input. The mechanical variable speed belt provides 30-200 RPM. The motor is equipped with motor leads only. The impeller is keyed and attaches to the 58" long shaft with set screws. The left hand impeller design produces downward fluid motion with clockwise rotation as viewed from above. All wetted parts are 316 stainless steel for chemical resistance. This electric model features a Baldor motor known for quality and reliability.
Motor
| Horsepower | 5 |
| Motor Enclosure | Explosion Proof |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | VM7044T |
| Boston Model or Equivalent | HF738R-10Z-B9-H-P32 |
| Motor Frame | 184TC |
| Motor Exterior | Painted |
| Phase | Three |
| Voltage | 230/460 |
| Hertz | 60 |
| FL Amps | 13.6:6.8 |
| ServiceFactor | 1.00 |
| InsulationClass | B |
| Drive | Gear Reduced |
| Gearbox Ratio | 10:1 |
| Gearbox RPM | 0-175 |
Impeller
| Quantity | 2 |
| Diameter | 15" |
| Style | Axial |
| Bore | 2" |
| Rotation | Left Hand |
| Material Construction | 316 Stainless Steel |
| Blade Construction | Welded |
| Set Screw | 2 |
Mount
| Adjustable | Raises 48" |
| Construction | Steel |
| Lift Style | Air Cylinder |
Shaft
| Exposed Dimensions | 2" x 58" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 1689 |
| Shipping Carrier | LTL Truck |
| FOB | New Albany, IN |
20 Business Days * Orders in quantity or with other items may extend lead times.
