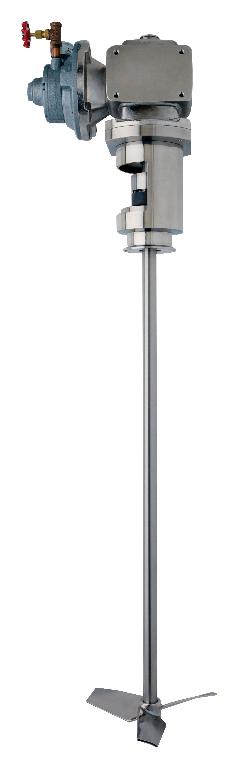

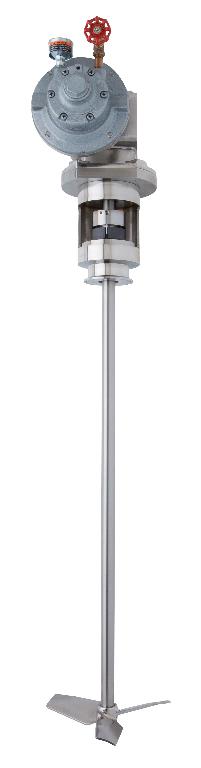

1-1/2 HP Air 3" Tri-Clamp® Mount Gear-Drive Sanitary Mixer with External Mechanical Seal

Model Number: PhG-150A3

INDCO's stainless steel PhG-series Tri-Clamp® Mount Gear-Drive Mixers with external mechanical seals are the clear choice for your most stringent sanitary mixing applications up to 10,000 liters.  Designed for the pharmaceutical, food and cosmetics industries, the gear-driven design with 3" tri-clamp® agitates large volumes of low viscosity materials with minimal shear or can be configured for smaller volumes of more viscous materials. The external dry-running mechanical seal is rated full vacuum to 200 psi and has standard EPDM USP Class VI elastomers.  The model PhG-150A3 mixer features a 1 1/2 HP air motor which provides maximum agitation when supplied with 100 PSI @ 70 CFM.  See our air motor performance guide for operation at lower air flow. The mixer shaft is 1 1/4" diameter by 48" long with welded and polished 16", 3-blade hydrofoil impeller. The seal housing, mounting flange and wetted parts are constructed of 316 stainless steel with a #4 buffed mirror finish.  Surface finishes as fine as 15Ra are available.  Documentation packages including drawings, parts lists, material certifications and certificates of conformance are provided.  Customizations can include stainless steel or non-lubricated air motors, alternate seal designs, electropolished wetted parts and multiple impeller options.  Impellers can be provided with set screws if preferred.    Please contact our engineers to assist with your application or for a quote on available options.

Documents

• Gast Air Motor Spec Sheet
• Roplan DRMS Features
• PH-Series Sanitary Mixer Cut Sheet
