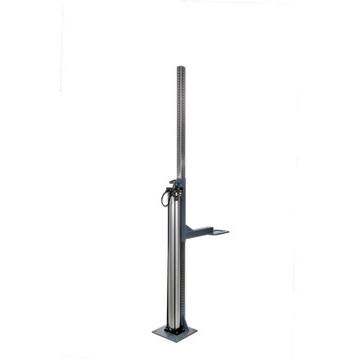

Air Lift Style Drum Lid Mixer Mounting Stand with Floor Mount Base
Model Number: PSA-DL-BP
Part Number: 21B1005
INDCO's heavy-duty extended arm mixer mounting stands are designed to work with all of INDCO's c-clamp mount mixers. All units are ruggedly constructed from heavy-gauge plate steel and square tubing. The mixer mounting arm extends out 18" from upright to accommodate drums or IBC totes. The mixer mounting plate is adapted to accept drum lid style mixers. This stationary model is designed with a 12" square steel mounting base with four 9/16" mounting holes for permanent floor attachment. 1/2" anchor bolts are required to mount the stand but are not included.
The air lift model requires 10 CFM @ 40 PSI to adjust the stand from a minimum height of 27" to a maximum height of 75". The air cylinder raises and lowers with a three position valve marked up, down or neutral with a quic-connect fitting for connection to your air line supply. All mixers are sold separately.
Mount
| Adjustable | "Minimum Height 27"" |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 104 |
| Shipping Carrier | LTL Truck |
| Freight Class | 150 |
| FOB | New Albany, IN |
Model Number: PSA-DL-BP
INDCO's heavy-duty extended arm mixer mounting stands are designed to work with all of INDCO's c-clamp mount mixers. All units are ruggedly constructed from heavy-gauge plate steel and square tubing. The mixer mounting arm extends out 18" from upright to accommodate drums or IBC totes. The mixer mounting plate is adapted to accept drum lid style mixers. This stationary model is designed with a 12" square steel mounting base with four 9/16" mounting holes for permanent floor attachment. 1/2" anchor bolts are required to mount the stand but are not included.
The air lift model requires 10 CFM @ 40 PSI to adjust the stand from a minimum height of 27" to a maximum height of 75". The air cylinder raises and lowers with a three position valve marked up, down or neutral with a quic-connect fitting for connection to your air line supply. All mixers are sold separately.
Mount
| Adjustable | "Minimum Height 27"" |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 104 |
| Shipping Carrier | LTL Truck |
| Freight Class | 150 |
| FOB | New Albany, IN |
5 Business Days * Orders in quantity or with other items may extend lead times.
