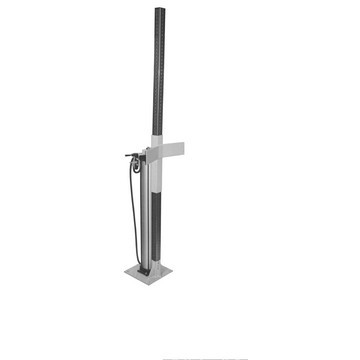

Air Lift Style Mixer Mounting Stand with Floor Mount Plate
Model Number: PSA84-BP
Part Number: 21B1007
INDCO's heavy-duty mixer mounting stands are designed to work with all of INDCO's c-clamp mount mixers and have a capacity of 200 lbs. All units are ruggedly constructed from heavy-gauge plate steel and square tubing. The mixer mounting plate extends 7-3/4" from angle at tubing and is 4" high. This stationary model is designed with a 12" square steel mounting base with four 9/16" mounting holes for permanent floor attachment. 1/2" anchor bolts are required to mount the stand but are not included.
The air lift model requires 10 CFM @ 40 PSI to adjust the stand from a minimum height of 45" to a maximum height of 81". The air cylinder raises and lowers with a three position valve marked up, down or neutral with a quic-connect fitting for connection to your air line supply.
Mount
| Adjustable | "Minimum Height 45"" |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 81 |
| Shipping Carrier | LTL Truck |
| Freight Class | 150 |
| FOB | New Albany, IN |
Model Number: PSA84-BP
INDCO's heavy-duty mixer mounting stands are designed to work with all of INDCO's c-clamp mount mixers and have a capacity of 200 lbs. All units are ruggedly constructed from heavy-gauge plate steel and square tubing. The mixer mounting plate extends 7-3/4" from angle at tubing and is 4" high. This stationary model is designed with a 12" square steel mounting base with four 9/16" mounting holes for permanent floor attachment. 1/2" anchor bolts are required to mount the stand but are not included.
The air lift model requires 10 CFM @ 40 PSI to adjust the stand from a minimum height of 45" to a maximum height of 81". The air cylinder raises and lowers with a three position valve marked up, down or neutral with a quic-connect fitting for connection to your air line supply.
Mount
| Adjustable | "Minimum Height 45"" |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 81 |
| Shipping Carrier | LTL Truck |
| Freight Class | 150 |
| FOB | New Albany, IN |
5 Business Days * Orders in quantity or with other items may extend lead times.
