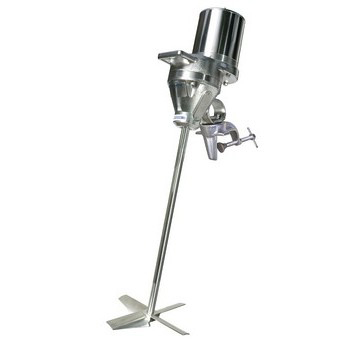

Clamp Mount 1 HP Gear Drive Electric Stainless Steel Sanitary Mixer
Model Number: SM-DSG100
Part Number: 22A1028
INDCO's sanitary portable clamp mount mixers are excellent for pharmaceutical, food, cosmetic or dairy applications where CIP or washdown capability is required. This deluxe model is made entirely of 300 series stainless steel and appears on the USDA list of accepted equipment in food-processing plants.
The SM-DSG100 is a 5:1 gear drive 1 HP electric unit. The totally enclosed fan cooled motor requires three phase 230/460 voltage and is equipped with motor leads only. The two 13" hydrofoils are polished to a #4 150 grit finish and are attached to the 57" long shaft with set screws or can be welded seamlessly to the shaft by quote. The mount assembly houses a supporting bearing for shaft stability and reduces wear on the motor shaft. The support bearing and internal parts are protected by a heavy-duty seal. The deluxe "C" clamp assembly allows for vertical and horizontal adjustments for most efficient mixer positioning. Many motor options, variable speed drives and additional customizations are available upon request through our engineering department. Material certification packages are also available and should be requested if required at the time of purchase.
Motor
Horsepower | 1 |
Motor Enclosure | Totally Enclosed Fan Cooled |
MotorRPM | 350 |
Motor Type | Electric |
Motor Exterior | Stainless Steel |
Rotation Top | Wired Clockwise |
Hertz | 60 |
ServiceFactor | 1.00 |
Drive | Gear Reduced |
Gearbox Type | F |
Impeller
Quantity | 2 |
Diameter | 13" |
Style | 4-Blade Hydrofoil |
Bore | 1" |
Rotation | Left Hand |
Material Construction | 316 Stainless Steel |
Blade Construction | Welded |
Set Screw | 2 |
Mount
Adjustable | Horizontal and Vertical Adjustments |
Construction | 300 Series Stainless Steel |
TankLinerSpec
Diameter | 13" |
Shaft
Exposed Dimensions | 1" x 57" |
Construction | 316 Stainless Steel |
General
Warranty | Manufacturer's Warranty |
Shipping Carrier | LTL Truck |
FOB | WA |
Model Number: SM-DSG100
INDCO's sanitary portable clamp mount mixers are excellent for pharmaceutical, food, cosmetic or dairy applications where CIP or washdown capability is required. This deluxe model is made entirely of 300 series stainless steel and appears on the USDA list of accepted equipment in food-processing plants.
The SM-DSG100 is a 5:1 gear drive 1 HP electric unit. The totally enclosed fan cooled motor requires three phase 230/460 voltage and is equipped with motor leads only. The two 13" hydrofoils are polished to a #4 150 grit finish and are attached to the 57" long shaft with set screws or can be welded seamlessly to the shaft by quote. The mount assembly houses a supporting bearing for shaft stability and reduces wear on the motor shaft. The support bearing and internal parts are protected by a heavy-duty seal. The deluxe "C" clamp assembly allows for vertical and horizontal adjustments for most efficient mixer positioning. Many motor options, variable speed drives and additional customizations are available upon request through our engineering department. Material certification packages are also available and should be requested if required at the time of purchase.
Motor
Horsepower | 1 |
Motor Enclosure | Totally Enclosed Fan Cooled |
MotorRPM | 350 |
Motor Type | Electric |
Motor Exterior | Stainless Steel |
Rotation Top | Wired Clockwise |
Hertz | 60 |
ServiceFactor | 1.00 |
Drive | Gear Reduced |
Gearbox Type | F |
Impeller
Quantity | 2 |
Diameter | 13" |
Style | 4-Blade Hydrofoil |
Bore | 1" |
Rotation | Left Hand |
Material Construction | 316 Stainless Steel |
Blade Construction | Welded |
Set Screw | 2 |
Mount
Adjustable | Horizontal and Vertical Adjustments |
Construction | 300 Series Stainless Steel |
TankLinerSpec
Diameter | 13" |
Shaft
Exposed Dimensions | 1" x 57" |
Construction | 316 Stainless Steel |
General
Warranty | Manufacturer's Warranty |
Shipping Carrier | LTL Truck |
FOB | WA |
40 Business Days * Orders in quantity or with other items may extend lead times.
