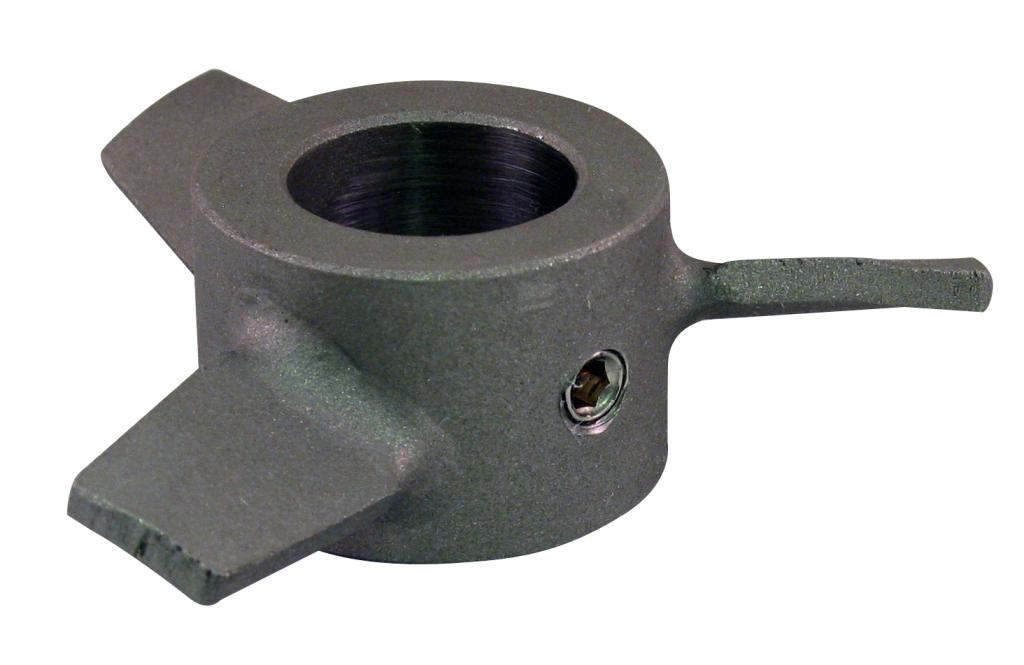

5" Dia. 3-Blade Axial Flow Turbine - Mill Finish
Model Number: STI-5
Part Number: 21C2070
INDCO's 3-blade axial flow turbines are excellent for medium viscosity applications and provide higher shear than hydrofoils or marine style propellers. The 1" inch blade width and the 45 degree pitch angle produce aggressive agitation to move viscous liquids and break down particles. The left hand design produces downward fluid motion with clockwise rotation as viewed from above. This 316 stainless steel axial flow turbine features blades that are welded to the hub and is finish machined to tight tolerances. The 5" diameter model has a maximum bore size of 1" and comes complete with single or double set screw dependent upon bore size. Please specify bore size when ordering. Our turbines can be ordered with custom keyways or polished to surface finishes as fine as 15Ra. Please contact us for a quote..
Impeller
| Diameter | 5" |
| Style | 3-Blade Axial Flow Turbine |
| Bore | 1" Max |
| Rotation | Left Hand |
| Pitch | 45 Degree |
| Material Construction | 316 Stainless Steel |
| Blade Construction | Welded |
| Set Screw | 1 - 2 based on bore size |
| Surface Finish | Mill Finish |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 2 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
Model Number: STI-5
INDCO's 3-blade axial flow turbines are excellent for medium viscosity applications and provide higher shear than hydrofoils or marine style propellers. The 1" inch blade width and the 45 degree pitch angle produce aggressive agitation to move viscous liquids and break down particles. The left hand design produces downward fluid motion with clockwise rotation as viewed from above. This 316 stainless steel axial flow turbine features blades that are welded to the hub and is finish machined to tight tolerances. The 5" diameter model has a maximum bore size of 1" and comes complete with single or double set screw dependent upon bore size. Please specify bore size when ordering. Our turbines can be ordered with custom keyways or polished to surface finishes as fine as 15Ra. Please contact us for a quote..
Impeller
| Diameter | 5" |
| Style | 3-Blade Axial Flow Turbine |
| Bore | 1" Max |
| Rotation | Left Hand |
| Pitch | 45 Degree |
| Material Construction | 316 Stainless Steel |
| Blade Construction | Welded |
| Set Screw | 1 - 2 based on bore size |
| Surface Finish | Mill Finish |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 2 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
10 Business Days * Orders in quantity or with other items may extend lead times.
