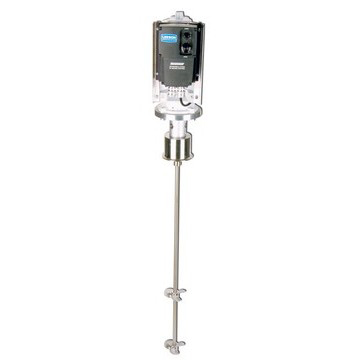

3" Tri-Clamp® Mount 1/2 HP Electric Washdown Direct Drive Variable Speed Mixer

Model Number: TCM-3-050V

INDCO's TCM-series Tri-Clamp® Flange Mount Mixers are designed for sealed applications in the pharmaceutical, food and cosmetics industries.  The sanitary tri-clamp® design provides quick and easy access to the vessel with no tools required.  The model TCM-3-050V electric variable speed unit plugs conveniently into a standard 120 volt outlet.  Features include a 3" diameter tri-clamp® flange, internally-mounted mechanical seal rated full vacuum to 125 psi and a flexible shaft coupler.  The 1/2 HP epoxy coated washdown motor is driven by a Leeson Washguard NEMA 4X control and provides output speed from 35 -1750 RPM.  The 5/8" diameter by  35" long shaft attaches to the coupler and two 4", 3-blade square pitch propellers with set screws.  All wetted parts are 316 stainless steel. This electric model features an ABB or an equivalent brand motor. Customizations can  include motors, multiple impeller options and electropolished wetted parts.  Material certifications and certificates of conformance can be provided.  Contact our engineers for assistance with your application or to quote available options.
