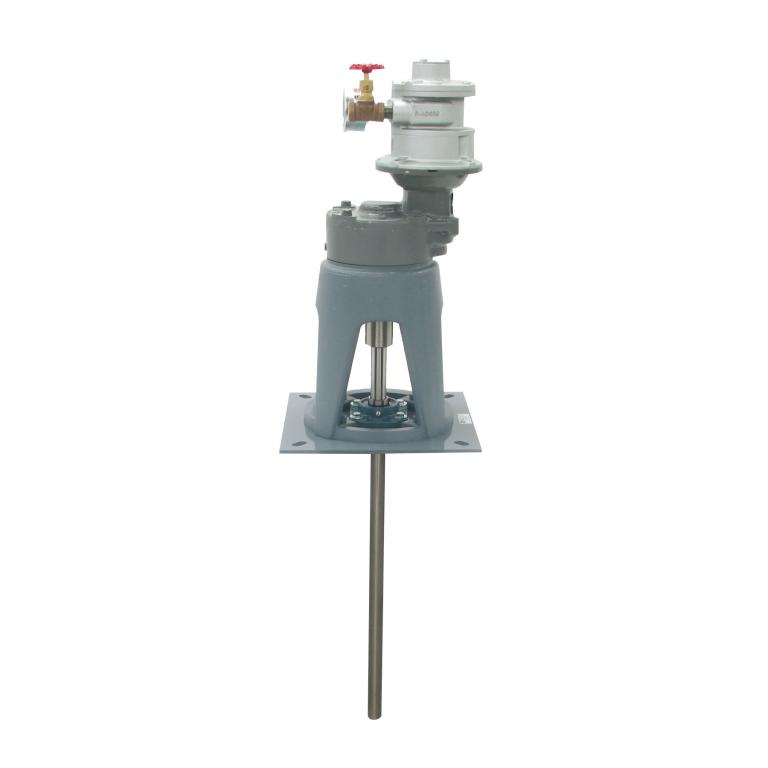

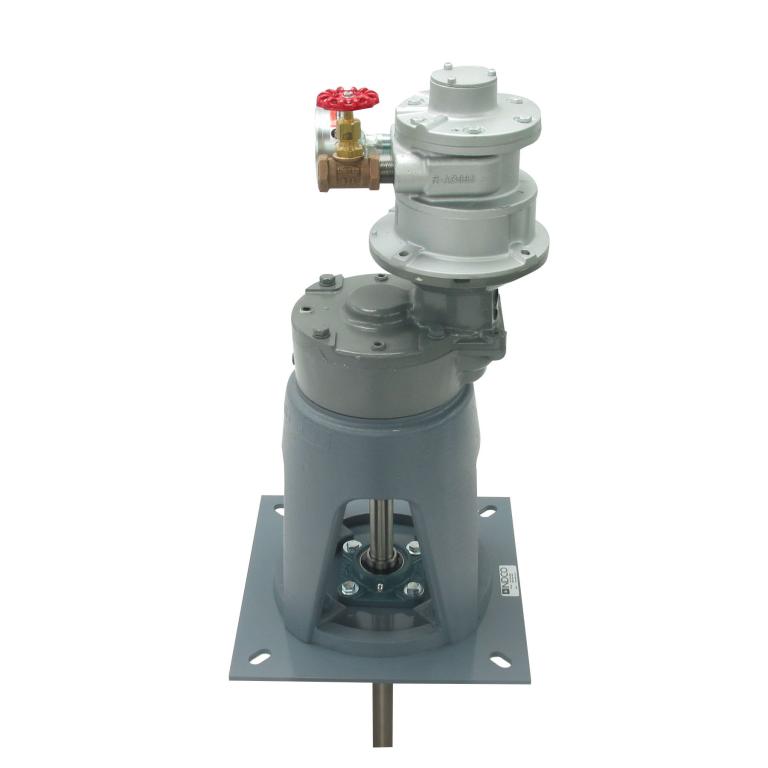

4 HP Air Gear Drive Plate Mount Mixer
Model Number: TMD-25
Part Number: 21Q2556
INDCO's Top Entry Plate Mount Mixer is designed to mount on a beam or channel over an open or closed tank operated under atmospheric conditions. These heavy duty models can mix various applications in batches up to 2000 gallons. A carrier bearing mounted at the mounting plate offers maximum shaft support and reduced motor and gearbox wear.
The 4 HP air motor is our largest in this product line and provides maximum agitation when supplied with 100 PSI @ 130 CFM. See our air motor performance guide for operation at lower air flow. This model with its 5:1 ratio gearbox operates at 60-600 RPM. The 72" long shaft attaches to the motor coupler and two 14" 3-blade square pitch impellers with set screws. All wetted parts are 316 stainless steel for chemical resistance. This model features a Gast air motor which is known for its rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.
Motor
| Horsepower | 4 |
| MotorRPM | 300-3000 |
| Motor Type | Air |
| Gast Model | 6AM-NRV-11A |
| IPTS Model | RPQ2-5-140TC |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Reversible |
| Air Requirements | 100 PSI @ 130 CFM |
| Air Inlet Size | 1/2" |
| Drive | Gear Reduced |
| Gearbox Ratio | 5:1 |
| Gearbox RPM | 60-600 |
Impeller
| Quantity | 2 |
| Diameter | 14" |
| Style | 3-Blade Square Pitch |
| Bore | 1-1/4" |
| Rotation | left hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 2 |
Mount
| Adjustable | Riser Angle Available by Quote |
| Construction | Steel |
| Features | 12" x 12" Baseplate |
Shaft
| Exposed Dimensions | 1-1/4" x 72" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | LTL Truck |
| Freight Class | 70 |
| FOB | New Albany, IN |
Model Number: TMD-25
INDCO's Top Entry Plate Mount Mixer is designed to mount on a beam or channel over an open or closed tank operated under atmospheric conditions. These heavy duty models can mix various applications in batches up to 2000 gallons. A carrier bearing mounted at the mounting plate offers maximum shaft support and reduced motor and gearbox wear.
The 4 HP air motor is our largest in this product line and provides maximum agitation when supplied with 100 PSI @ 130 CFM. See our air motor performance guide for operation at lower air flow. This model with its 5:1 ratio gearbox operates at 60-600 RPM. The 72" long shaft attaches to the motor coupler and two 14" 3-blade square pitch impellers with set screws. All wetted parts are 316 stainless steel for chemical resistance. This model features a Gast air motor which is known for its rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.
Motor
| Horsepower | 4 |
| MotorRPM | 300-3000 |
| Motor Type | Air |
| Gast Model | 6AM-NRV-11A |
| IPTS Model | RPQ2-5-140TC |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Reversible |
| Air Requirements | 100 PSI @ 130 CFM |
| Air Inlet Size | 1/2" |
| Drive | Gear Reduced |
| Gearbox Ratio | 5:1 |
| Gearbox RPM | 60-600 |
Impeller
| Quantity | 2 |
| Diameter | 14" |
| Style | 3-Blade Square Pitch |
| Bore | 1-1/4" |
| Rotation | left hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 2 |
Mount
| Adjustable | Riser Angle Available by Quote |
| Construction | Steel |
| Features | 12" x 12" Baseplate |
Shaft
| Exposed Dimensions | 1-1/4" x 72" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Shipping Carrier | LTL Truck |
| Freight Class | 70 |
| FOB | New Albany, IN |
5 Business Days * Orders in quantity or with other items may extend lead times.
