1/2 HP Electric EP Direct Drive 330 Gal IBC Tote Lid Mixer
Model Number: TL-050E-L
Part Number: 21A5377

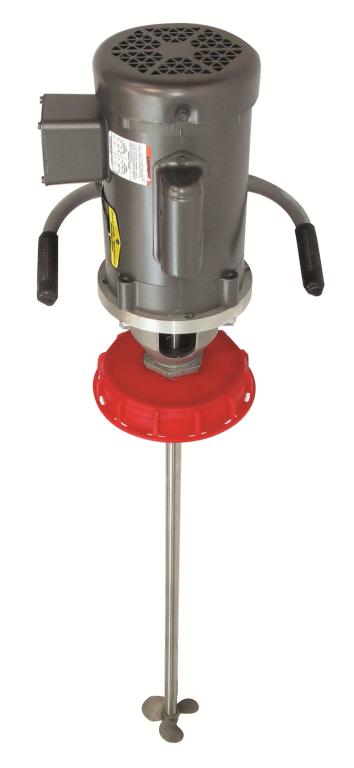

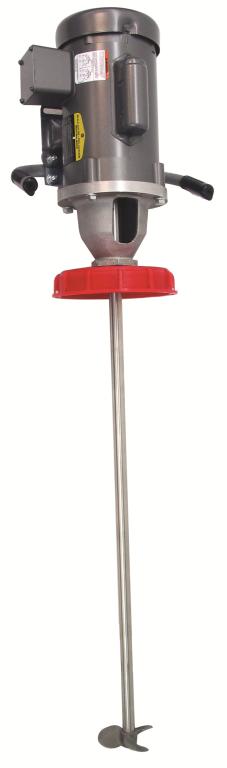

INDCO's newest IBC tote mixer is easy to lift with the handlebar feature and installs with a 6" screw cap. The TL-050E-L is ideal for mixing light viscosity materials in 330 gal totes. The 1/2 HP electric motor model is an explosion proof motor and requires single phase 115/230 voltage. This unit is equipped with motor leads only and operates at 1750 RPM. This electric model features an ABB motor or equivalent. The 39" exposed shaft attaches to the motor coupler and (1) 5" 3-blade square pitch impeller with set screw. All wetted parts are 316 stainless steel for chemical resistance.
Motor
| Horsepower | 1/2 |
| Motor Enclosure | Explosion Proof |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | VL5004A |
| Motor Frame | 56C Face |
| Phase | Single |
| Voltage | 115/230 |
| Hertz | 60 |
| FL Amps | 7.4:3.9-3.7 |
| ServiceFactor | 1.00 |
| InsulationClass | B |
Impeller
| Quantity | 1 |
| Diameter | 5" |
| Style | 3-Blade Square Pitch |
| Bore | 3/4" |
| Rotation | Left Hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 1 |
Mount
| Construction | Plastic |
| Features | 6" IBC Screw Cap |
Shaft
| Exposed Dimensions | 3/4" x 39" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 53 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
Model Number: TL-050E-L
INDCO's newest IBC tote mixer is easy to lift with the handlebar feature and installs with a 6" screw cap. The TL-050E-L is ideal for mixing light viscosity materials in 330 gal totes. The 1/2 HP electric motor model is an explosion proof motor and requires single phase 115/230 voltage. This unit is equipped with motor leads only and operates at 1750 RPM. This electric model features an ABB motor or equivalent. The 39" exposed shaft attaches to the motor coupler and (1) 5" 3-blade square pitch impeller with set screw. All wetted parts are 316 stainless steel for chemical resistance.
Motor
| Horsepower | 1/2 |
| Motor Enclosure | Explosion Proof |
| MotorRPM | 1750 |
| Motor Type | Electric |
| Baldor Model or Equivalent | VL5004A |
| Motor Frame | 56C Face |
| Phase | Single |
| Voltage | 115/230 |
| Hertz | 60 |
| FL Amps | 7.4:3.9-3.7 |
| ServiceFactor | 1.00 |
| InsulationClass | B |
Impeller
| Quantity | 1 |
| Diameter | 5" |
| Style | 3-Blade Square Pitch |
| Bore | 3/4" |
| Rotation | Left Hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Blade Construction | Cast |
| Set Screw | 1 |
Mount
| Construction | Plastic |
| Features | 6" IBC Screw Cap |
Shaft
| Exposed Dimensions | 3/4" x 39" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 53 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
2 Business Days * Orders in quantity or with other items may extend lead times.
