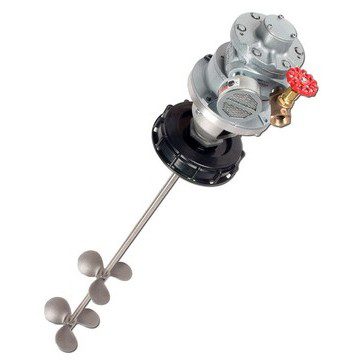

4 HP Air Direct Drive IBC Tote Lid Mixer
Model Number: TL-4A
Part Number: 21A5369
INDCO's newest IBC mixer is easy to install with a 6" screw cap. The 300-3000 RPM variable speed allows mixing of light to medium viscosity materials. The 4 HP air motor is our largest in this product line and provides maximum agitation when supplied with 100 PSI @ 130 CFM. See our air motor performance guide for operation at lower air flow. The 36" exposed shaft attaches to the motor coupler and two 8" 3-blade square pitch impellers with set screws. All wetted parts are made of stainless steel for chemical resistance. This model features a Gast air motor which is known for its rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.
Motor
| Horsepower | 4 |
| MotorRPM | 300-3000 |
| Motor Type | Air |
| Gast Model | 6AM-NRV-11A |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Reversible |
| Air Requirements | 100 PSI @ 130 CFM |
| Air Inlet Size | 1/2" |
Impeller
| Quantity | 2 |
| Diameter | 8" |
| Style | 3-Blade Square Pitch |
| Bore | 3/4" |
| Rotation | left hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Set Screw | 2 |
Mount
| Construction | Plastic |
| Features | 6" IBC Screw Cap |
Shaft
| Exposed Dimensions | 3/4" x 36" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 35 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
Model Number: TL-4A
INDCO's newest IBC mixer is easy to install with a 6" screw cap. The 300-3000 RPM variable speed allows mixing of light to medium viscosity materials. The 4 HP air motor is our largest in this product line and provides maximum agitation when supplied with 100 PSI @ 130 CFM. See our air motor performance guide for operation at lower air flow. The 36" exposed shaft attaches to the motor coupler and two 8" 3-blade square pitch impellers with set screws. All wetted parts are made of stainless steel for chemical resistance. This model features a Gast air motor which is known for its rugged construction and reliability. Air motors deliver variable speed for maximum flexibility or multiple applications. They are lighter weight than our electric models and reduce the possibility of explosion in a combustible environment.
Motor
| Horsepower | 4 |
| MotorRPM | 300-3000 |
| Motor Type | Air |
| Gast Model | 6AM-NRV-11A |
| Motor Frame | 56C Face |
| Motor Exterior | Painted |
| Rotation Top | Reversible |
| Air Requirements | 100 PSI @ 130 CFM |
| Air Inlet Size | 1/2" |
Impeller
| Quantity | 2 |
| Diameter | 8" |
| Style | 3-Blade Square Pitch |
| Bore | 3/4" |
| Rotation | left hand |
| Pitch | 1:1 |
| Material Construction | 316L Stainless Steel |
| Set Screw | 2 |
Mount
| Construction | Plastic |
| Features | 6" IBC Screw Cap |
Shaft
| Exposed Dimensions | 3/4" x 36" |
| Construction | 316 Stainless Steel |
General
| Warranty | 1 Year Warranty against defective materials and workmanship. All component parts of our products are covered by this warranty, except for normal wear items such as belts or impellers. |
| Weight | 35 |
| Shipping Carrier | Small Parcel |
| FOB | New Albany, IN |
2 Business Days * Orders in quantity or with other items may extend lead times.
